mods4cars product manual

OPERATION AND PROGRAMMING

RKHBPE1

Comfort Control Module designed for

• Porsche Macan

Firmware v1.00 and up

Further information and manuals for all products can be found on our web site

w w w . m o d s 4 c a r s . c o m

PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.

We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product. Operation must be supervised and paid attention to in order to ensure that there are no objects or persons in range of moving parts due to the fact that top mechanics do not have pinch protection. Please study and be aware of the procedures to interrupt an ongoing operation in an emergency.

Important Information. READ BEFORE USING!
	PRINTING THIS MANUAL This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers. Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly. ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
	TROUBLE SHOOTING - NEED TO CONTACT US? If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size! We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support If you need to contact us, the best and fastest way to do so is by opening a support ticket there
	This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.

Detailed function description (Factory setting underlined)

Function 1 - MODULE MODE + MASTER SWITCH ( 0=OFF / 1=ON )
The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed while keeping all other function settings intact for when it is re-enabled later. • Setting 1 enables the module. EXTREMELY IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or risk of injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car in for routine maintenance or lending it to a third person! In case of any top malfunction NEVER take the car with the module still installed to an unsuspecting dealer! In such cases ALWAYS contact Mods4Cars for support first at www.mods4cars.com or completely uninstall the module before a dealer visit. Operation with trunk switch in the door: • Tap the trunk switch briefly to auto-close the trunk. • Hold down the trunk switch to manually close the trunk. • The trunk can be closed with the ignition fully off and while driving at slow speeds. Operation with the Factory Remote: • Hold the UNLOCK button for 1 second to open all windows and vent the sunroof. • Hold the LOCK button for 1 second to close all windows, sunroof and trunk. • Hold down the trunk button on the remote for 1 second to auto-close the trunk.

Function 1 - MODULE MODE + MASTER SWITCH ( 0=OFF / 1=ON )

The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed while keeping all other function settings intact for when it is re-enabled later.

• Setting 1 enables the module.

EXTREMELY IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or risk of injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car in for routine maintenance or lending it to a third person! In case of any top malfunction NEVER take the car with the module still installed to an unsuspecting dealer! In such cases ALWAYS contact Mods4Cars for support first at www.mods4cars.com or completely uninstall the module before a dealer visit.

Operation with trunk switch in the door:
• Tap the trunk switch briefly to auto-close the trunk.
• Hold down the trunk switch to manually close the trunk.
• The trunk can be closed with the ignition fully off and while driving at slow speeds.

Operation with the Factory Remote:
• Hold the UNLOCK button for 1 second to open all windows and vent the sunroof.
• Hold the LOCK button for 1 second to close all windows, sunroof and trunk.
• Hold down the trunk button on the remote for 1 second to auto-close the trunk.

Function 2 - Keyless Operation ( 0=OFF / 1=ON )
This function allows to close the sunroof, windows and trunk by touching the door handle (requires Keyless Entry option!) • Setting 1 only allows closing via keyless. Operation with the Keyless Entry door handle: • Hold thumb on lock sensor for 3 seconds: Close sunroof, windows and trunk.

Function 3 - Folding Mirrors ( 0=OFF / 1=IN / 2=IN/OUT )
This function allows remote control of the motorized mirrors (factory option motorized mirrors required). The mirrors always fold back out when opening any door. • Setting 1 will fold the mirrors in automatically when locking the car. • Setting 2 will fold the mirrors in automatically when locking the car and out immediately when unlocking. Mirror puddle light delay on fold out: When setting 2 is activated and the vehicle is unlocked, the mirrors will fold out and once fully extended will activate the downward facing puddle lights (if fitted).

Function 3 - Folding Mirrors ( 0=OFF / 1=IN / 2=IN/OUT )

This function allows remote control of the motorized mirrors (factory option motorized mirrors required). The mirrors always fold back out when opening any door.

• Setting 1 will fold the mirrors in automatically when locking the car.
• Setting 2 will fold the mirrors in automatically when locking the car and out immediately when unlocking.

Mirror puddle light delay on fold out:
When setting 2 is activated and the vehicle is unlocked, the mirrors will fold out and once fully extended will activate the downward facing puddle lights (if fitted).

Function 4 - Auto-Mute Radio on ignition ( 0=OFF / 1=OLD / 2=NEW )
This function automatically turns the volume of the radio down to 0 (silent) after the ignition is first turned on (or the key inserted). This is useful for cases where the radio does not remember the last volume setting or will always start with a default setting after the car has been sitting for a while and for people who like to always start driving without any distraction. • Setting 1 is for older model years. • Setting 2 is for newer model years or when setting 1 causes the right screen in the cluster to cycle through screens rapidly and the radio doesn't mute.

Function 4 - Auto-Mute Radio on ignition ( 0=OFF / 1=OLD / 2=NEW )

This function automatically turns the volume of the radio down to 0 (silent) after the ignition is first turned on (or the key inserted). This is useful for cases where the radio does not remember the last volume setting or will always start with a default setting after the car has been sitting for a while and for people who like to always start driving without any distraction.

• Setting 1 is for older model years.
• Setting 2 is for newer model years or when setting 1 causes the right screen in the cluster to cycle through screens rapidly and the radio doesn't mute.

Programming

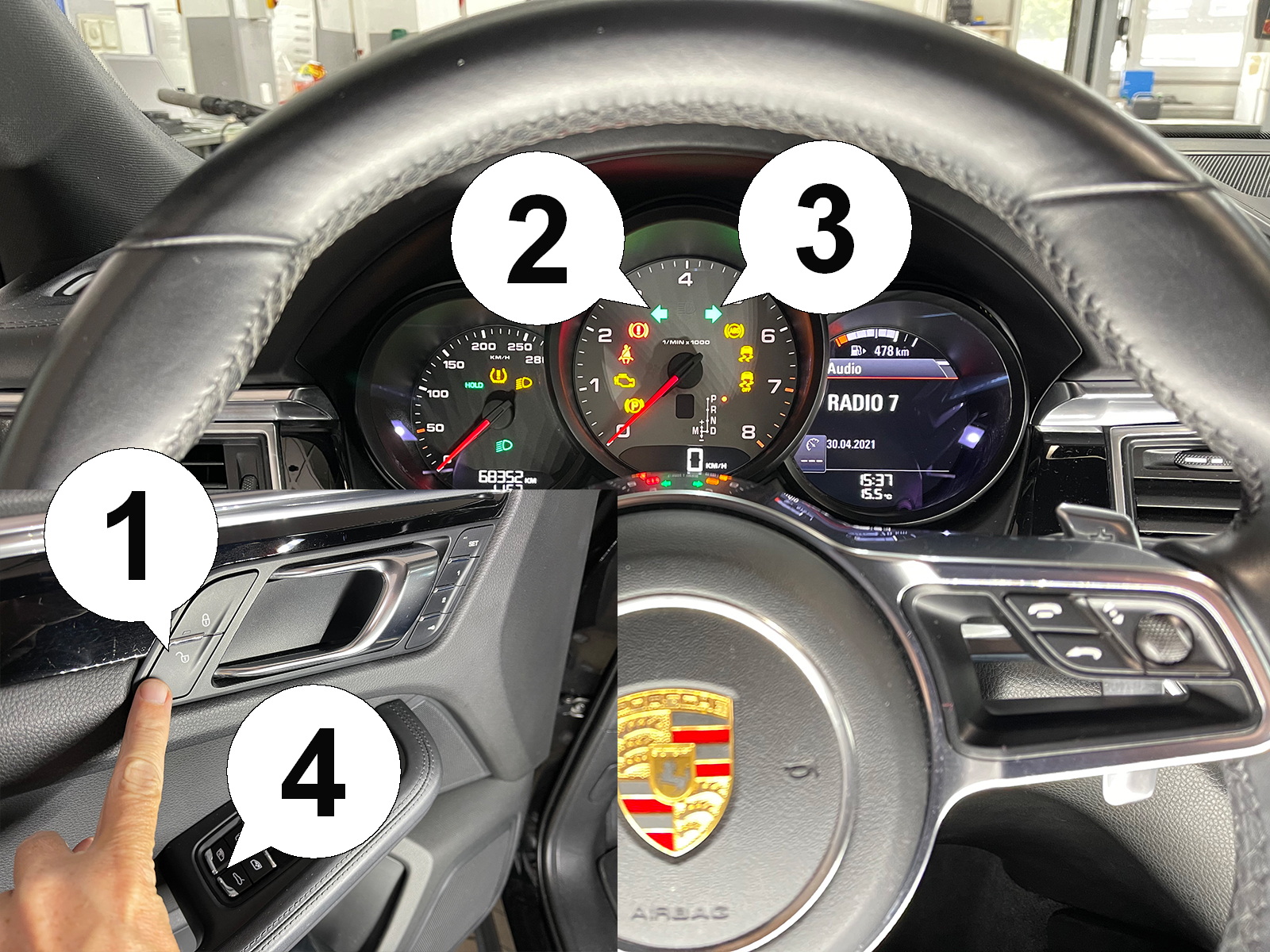

	This module offers several different functions, each with several settings. All functions and settings are described in detail above and a quick reference table (matrix) can be found at the end of this manual. We recommend printing the matrix and storing it in the glove box! To activate the programming mode, turn the ignition fully ON (no need to start the engine), then hold down the door unlock switch (1) until both blinker arrows (2) and (3) in the cluster light up. Now let go. The module shows the current function via the left arrow (2) and that function's setting via right arrow (3). As an example, the left arrow blinks 1x and the right arrow blinks 2x: Function 1 is currently set to setting 2. To choose the function, tap the trunk or windows switch (4) briefly, to change the setting, hold the trunk or windows switch (4) for about 1 sec. A brief tap on the windows switch advances to the next function, a brief tap on the trunk switch returns to the last one. After reading the current function and setting via the blinker signals, a long tap on the windows switch increases the setting while a long tap on the trunk close switch decreases it. To end programming mode, either turn the ignition off or tap the switch (1) once again. The programming mode automatically terminates after 60 sec. of inactivity. End of programming mode is indicated by both arrows lighting up simultaneously for 1 second.

Programming

This module offers several different functions, each with several settings. All functions and settings are described in detail above and a quick reference table (matrix) can be found at the end of this manual. We recommend printing the matrix and storing it in the glove box!
To activate the programming mode, turn the ignition fully ON (no need to start the engine), then hold down the door unlock switch (1) until both blinker arrows (2) and (3) in the cluster light up. Now let go.
The module shows the current function via the left arrow (2) and that function's setting via right arrow (3). As an example, the left arrow blinks 1x and the right arrow blinks 2x: Function 1 is currently set to setting 2.
To choose the function, tap the trunk or windows switch (4) briefly, to change the setting, hold the trunk or windows switch (4) for about 1 sec. A brief tap on the windows switch advances to the next function, a brief tap on the trunk switch returns to the last one. After reading the current function and setting via the blinker signals, a long tap on the windows switch increases the setting while a long tap on the trunk close switch decreases it.

To end programming mode, either turn the ignition off or tap the switch (1) once again. The programming mode automatically terminates after 60 sec. of inactivity.
End of programming mode is indicated by both arrows lighting up simultaneously for 1 second.

Function/Setting Matrix (green fields are defaults)
Product: RKHBPE1 - RemoteKEY for Porsche Macan Firmware: v1.00 and up
	SETTING 0	SETTING 1	SETTING 2
Function 1	OFF	ON
MODULE MODE + MASTER SWITCH	Module Disabled	Module Enabled
Function 2	OFF	ON
Keyless Operation	Factory behavior	Active
Function 3	OFF	IN	IN/OUT
Folding Mirrors	Disabled	Fold in	Fold in/out
Function 4	OFF	OLD	NEW
Auto-Mute Radio on ignition	Disabled	Mute radio (old mode)	Mute radio (new mode)
