OPERATION AND PROGRAMMING


STLFRT1

Comfort Roof Control Module for

  • Renault Megane CC III

    v1.0


    • Further information and manuals for all products can be found on our web site

    w w w . m o d s 4 c a r s . c o m


    We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product.
    PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.
    Important Information. READ BEFORE USING!
    PRINTING THIS MANUAL
    This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers.

    Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly.

    ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
    TROUBLE SHOOTING - NEED TO CONTACT US?
    If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size!
    We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support

    If you need to contact us, the best and fastest way to do so is by opening a support ticket there

    This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.
    Detailed function description (* = Factory setting)
    Function 1 - Main Switch - Workshop and Diagnostics ( 0=OFF / *1=ON )
    The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed.
    Setting 0 disables the entire module while keeping all other function settings intact. This allows turning the module off and back on without the need to reconfigure all of the other user configurable settings.

    IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car to a shop or lending it to a third person! If problems with the top arise while the module is installed, ALWAYS contact Mods4Cars first at www.mods4cars.com. NEVER take the car to a dealer without getting support first!


    Function 2 - One-Touch top operation ( 0=OFF / *1=ON WU / 2=ON WD / 3=EXT WU / 4=EXT WD )
    This function enables one-touch console switch operation, for which the window position after top open as well as an optional extended convenience mode can be programmed.
    Setting 1 is standard one-touch mode with windows up (WU) after top open. Setting 2 is standard one-touch mode with windows down (WD) after top open. Settings 3 and 4 (extended) are the same as 1 and 2, but additionally it is possible to turn off the ignition and pull the key while the top still continues.
    Settings 3 and 4 require extra responsibility and caution to avoid injury by moving top parts to passengers not expecting the top to continue running after the engine is turned off!

    Top operation with the console switch:
    • Holding down the switch (>2 sec) in either direction will operate the top in manual mode for as long as the switch is held.
    • Tap open 1x to open the top and bring the windows into the selected position (WU=Windows Up, WD=Windows Down).
    • Tap open 2x to open the top and bring the windows into the opposite position this one time (Down on settings 1 and 3, Up on settings 2 and 4).
    • Tap close 1x to close top and windows.
    • Tap close 2x to close only the top and leave the windows open.
    • Tap the console switch in any direction to interrupt an ongoing operation at any time - even if the top was started by remote!

    Comfort close for all windows:
    • Tap the top close switch when the top is already closed to roll all windows up.


    Function 3 - Remote Control ( 0=OFF / *1=ON / 2=EXT / 3=AUTO UP / 4=AUTO ALWAYS )
    This function allows top operation with the original remote fob by tapping the lock and unlock button in quick succession.
    Setting 1 is standard remote mode. Turning on the ignition will interrupt top operation.
    Setting 2 is extended remote mode. Turning on the ignition and starting the engine will not interrupt top operation.
    Setting 3 automatically raises all windows when the ignition is turned off and the top is down.
    Setting 4 always raises all windows when the ignition is turned off. The extended settings require extra caution to avoid injury by moving top parts!

    Top operation with the remote fob:
    • Tap UNLOCK on the remote 3x (in 1 sec intervals) to open the roof.
    • Tap LOCK on the remote 3x (in 1 sec intervals) to close roof and windows. (may not work on all cars)
    • Alternatively the top can be closed using the 3x UNLOCK sequence if there should be any problem with the 3x LOCK sequence.
    • With KeyCard Handsfree option: tap the lock button on the driver's door handle 3x to open the top (if closed) or to close the top (if open).

    IMPORTANT INFORMATION:
    For technical reasons it is not possible for the module to close the windows without the ignition being on.
    • When closing the top, all windows must be fully UP beforehand, otherwise they will NOT close at the end of the top operation.
    While the top is in motion, the car can not be locked by remote, because the system sees an "open trunk lid"!
    • The best way to to close the top after parking the car is to enable windows auto-close and not use the center console switch before getting out. Instead, get out first and close the top by remote (3x close) or with KeyCard Handsfree option by tapping the lock button (3x) on the driver's door handle.


    Function 4 - Maximum allowed speed for top operation ( *0=0kmh / 1=10kmh / 2=20kmh / 3=30kmh / 4=40kmh )
    Setting the max allowed speed for top operation in steps of 10km/h (~7mph). Setting 0 only allows roof operation while halted.
    For technical reasons the cluster will sound the buzzer and show an alert when operating the top while driving faster than 13mph/20kmh due to the fact that the trunk lid is unlocked as part of the top operation!
    WARNING: Once the top is started within the programmed speed limit, it will continue running, even if the speed later exceeds the limit during the top operation!


    Function 5 - All-Windows-Switch ( 0=NORMAL / *1=ONE-TOUCH )
    This function allows to program the "all-windows" switch to raise all windows using One-Touch. By factory this switch only does One-Touch down.


    Programming
    This module is equipped with our interactive setup feature to allow easy setting of the desired options.

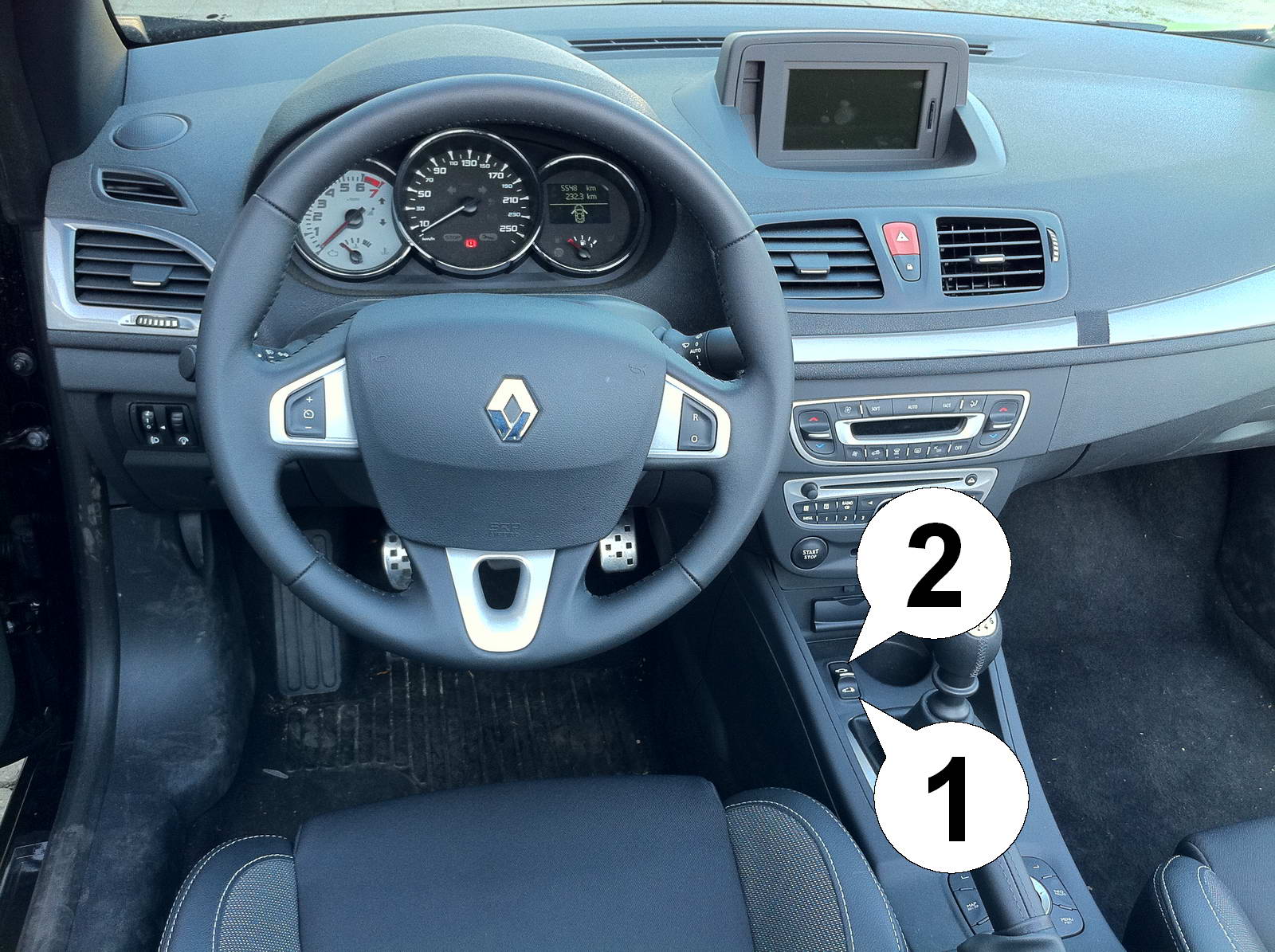

    All programming is done by using the center console switch for top close (1) and for top open (2) and the cluster buzzer. Functions and their settings are indicated by beeping patterns of the buzzer. Navigation is done by tapping top close (1) for next function or top open" (2) for next setting. After selecting the last function or function setting, the setup automatically jumps back to the first function / lowest setting. Each time either a new function is selected or a function's setting is changed, the buzzer will indicate the new status by first beeping the function number, followed by a short pause and then the setting number.
    To enter programming mode, first make sure the ignition is fully on. With the top closed, hold down the close (1) button or with the top open hold down the open (2) button for about 5 sec. (until you hear a beep) then let go. The buzzer will now indicate function 1 and its setting. Either 1-1 for ON or 1-0 for OFF. From this point on you can navigate through the functions by tapping top close and once the buzzer finished the beeping pattern for function and setting, change the setting by tapping top open". The new settings are active immediately.

    To end programming mode, either wait for 30 sec. or hold down switch in either direction. End of programming mode is indicated by another beep.



    Function/Setting Matrix (*green fields are defaults)
    Product: STLFRT1 - SmartTOP for Renault Megane 3 Cabrio
    Firmware: v1.xx
    SETTING 0SETTING 1SETTING 2SETTING 3SETTING 4
    FUNCTION 1 OFF*ON---
    Main SwitchModule DisabledModule Enabled
    FUNCTION 2 OFF*ON WUON WDEXT WUEXT WD
    Conv. Top One-TouchDon't change center console switch behaviorEnabled + windows up after top openSame as 1 but windows down after top openAllow ignition off during top operationSame as 3 but windows down after top open
    FUNCTION 3 OFF*ONEXTAUTO UPAUTO ALWAYS
    Remote ControlNo remote functionsEnabledAllow ignition on during top operationClose windows on ign off when top is downAlways close windows on ign off
    FUNCTION 4 *0 km/h10 km/h20 km/h30 km/h40 km/h
    Maximum SpeedOnly while halted10 km/h (~7mph)20 km/h (~13mph)30 km/h (~19mph)40 km/h (~25mph)
    FUNCTION 5 OFF*ONETOUCH---
    All WindowsFactory behaviorOne-Touch operation to raise all windows
