Comfort Roof Control Module for

  • Renault Megane CC III


  • Further information and manuals for all products can be found on our web site

    w w w . m o d s 4 c a r s . c o m

    We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product.
    Important Information. READ BEFORE INSTALLING!
    This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers.

    Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly.

    If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size!
    We now have a full Knowledge Base with Support Ticket system available online at

    If you need to contact us, the best and fastest way to do so is by opening a support ticket there

    This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.

    If the top does not work properly or at all after installing the module, these tips can be very helpful:

    1) Turn Function 1 (Main Switch) off (Setting 0). The module will be completely passive. If the problem still persists and the top won't work, check all connections. Please also check the green DATA LED on the module!

    2) Function 2 now has a valet mode (Setting 2) on many modules. Valet mode completely disables opening of the top. Check the setting for function 2 and make sure the module is NOT in valet mode!

    IMPORTANT: Not all modules have the valet mode! Please check the Operation and Programming Manual!

    The DATA LED shows the module status and helps troubleshooting issues during installation:

    When the ignition is ON: The LED should BLINK (flash) in a regular pattern (about 1x per second). This indicates that the module is receiving data and should work OK.

    When the ignition is OFF: The LED should BLINK (flash) as long as the data bus is still active and turn off after a while (max 5 min) indicating that the car has entered stand-by (sleep) mode.

    If the LED is permanently lit with the ignition ON, the module is NOT receiving data from the top controller and all connectors should be checked.

    If the LED does NOT light up at all when turning the ignition ON, the module is either not getting power or not receiving ANY data. All connectors should be checked.
    This module is installed using the 3M wire taps very popular with 12V aftermarket industry for their reliability and durability. The most common problem during installation is a bad contact between the plugs from the supply wires and the wire taps. Please make absolutely sure that the metal blades of the plugs slide into the slots of the t-taps. It happens that the blade "misses" the slot and the connection looks correct, but doesn't make electrical contact!

    The T-taps come in RED (for thin wires), BLUE (for medium wires) and YELLOW (for thick wires).

    To test if you installed the module correctly after all wires are connected, turn the ignition fully on and watch the green LED on the module. It should blink (flash) to signal a correct installation. If the LED either does not turn on or stays on permanently, there is a bad contact or a missing connection! See detailed explanation of the DATA LED.
    Installation - Steps 1-3

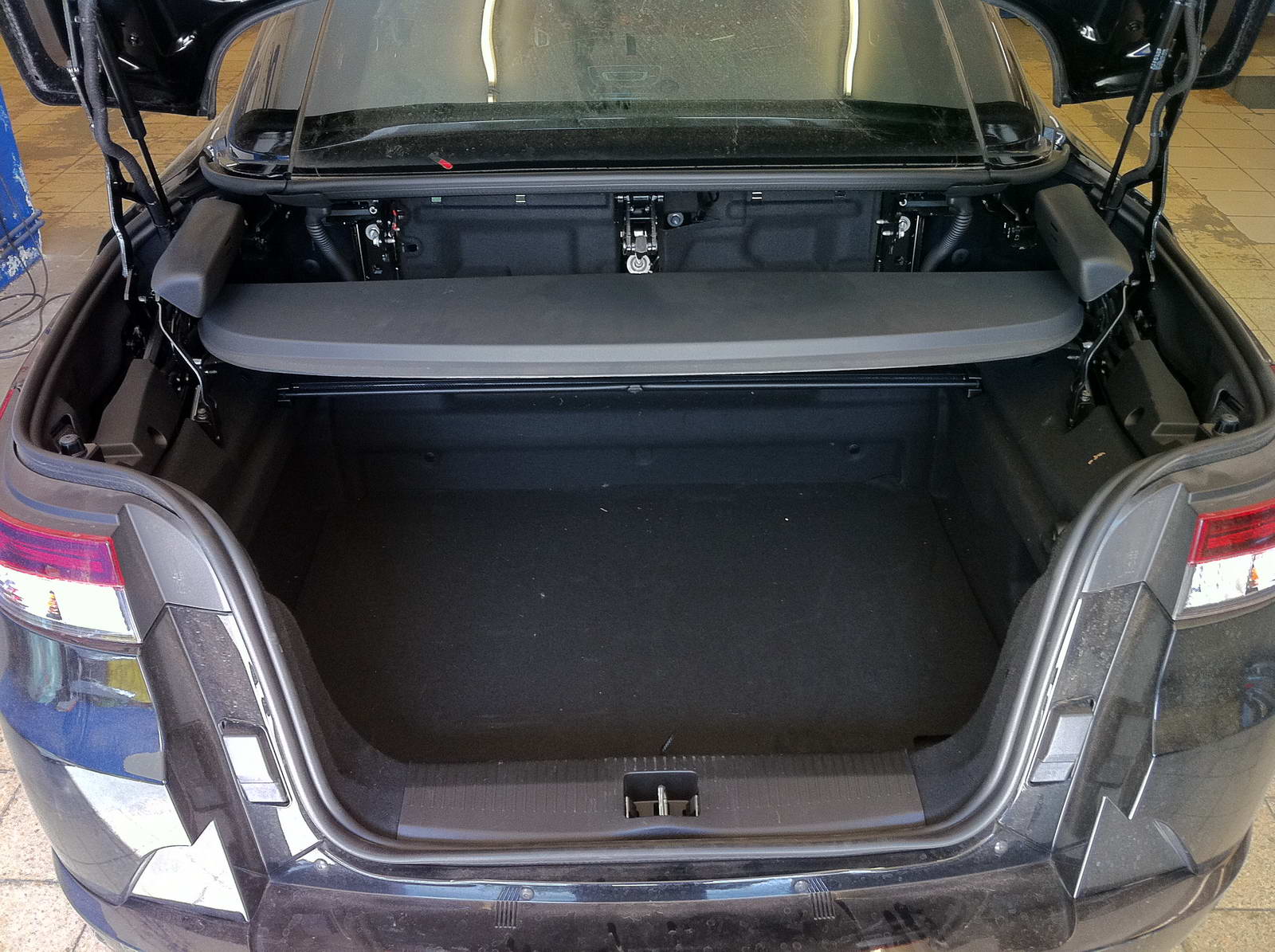

    1. Completely close the convertible top and open the trunk. IMPORTANT: Turn off ignition and pull key out before continuing! Empty the trunk and remove the bottom cover.

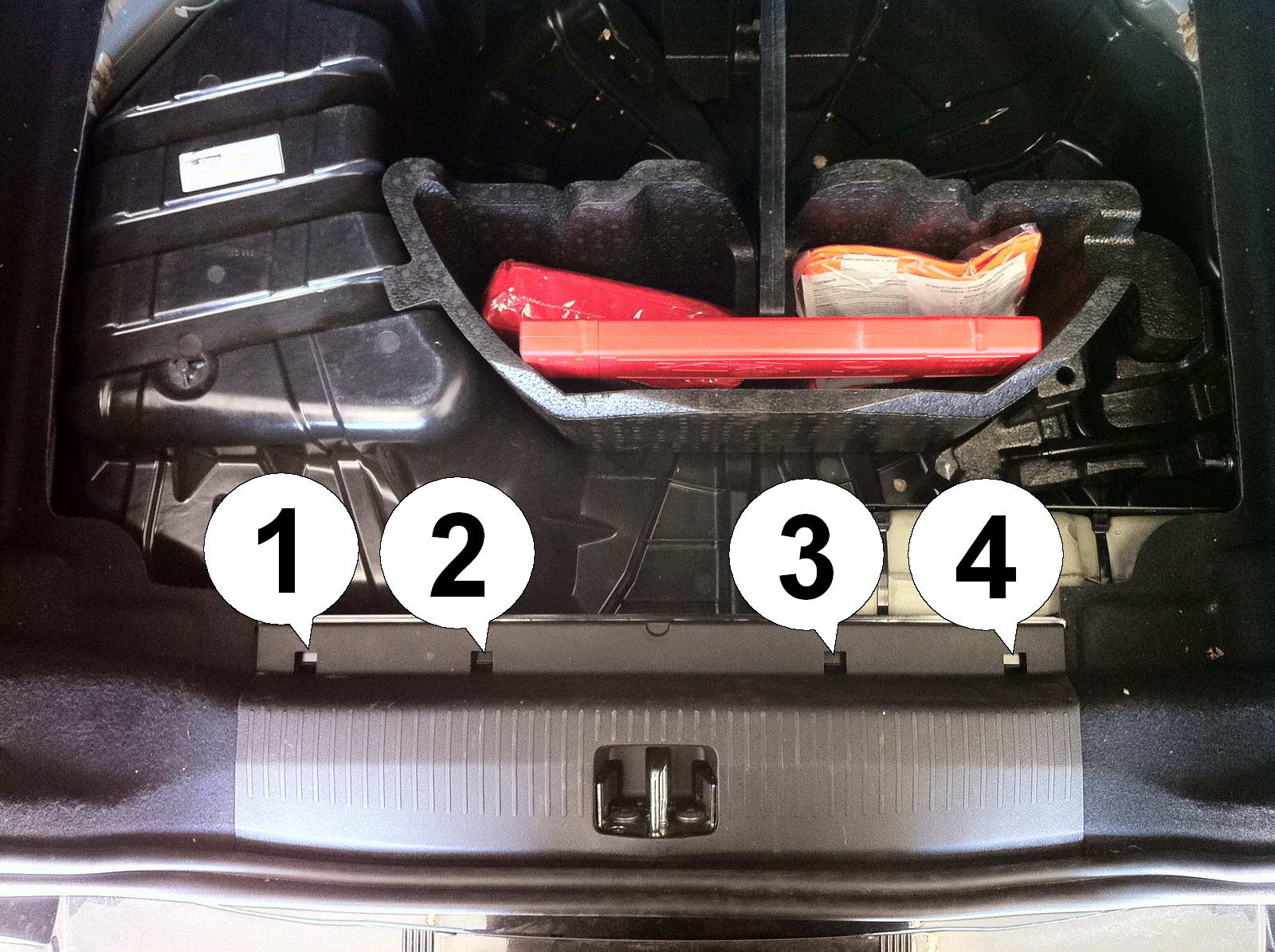

    2. Push in the locking tabs (1) through (4) while pulling up hard on the plastic cover.

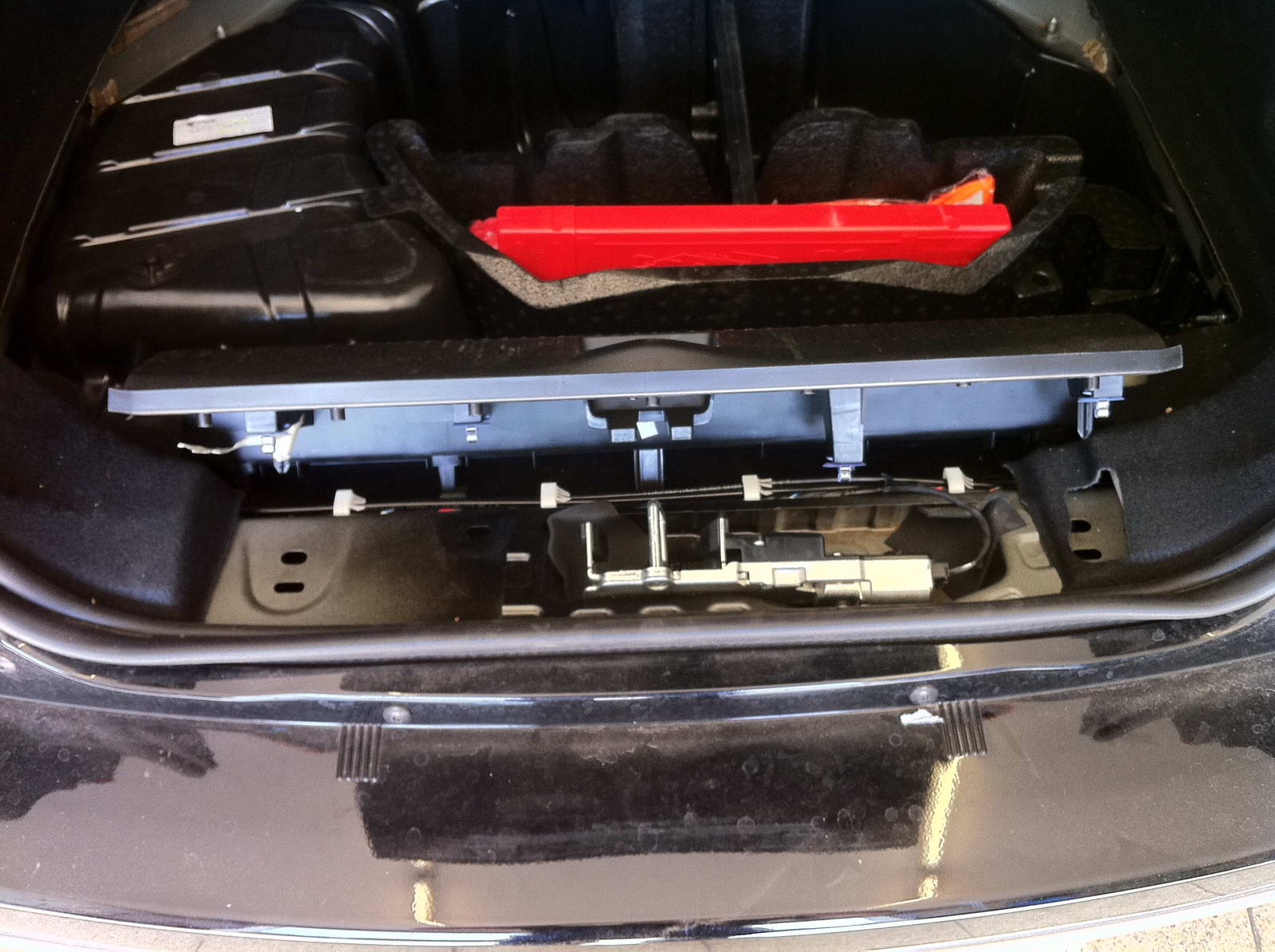

    3. The plastic cover is only snapped into place. No screws to remove.
    Installation - Steps 4-6

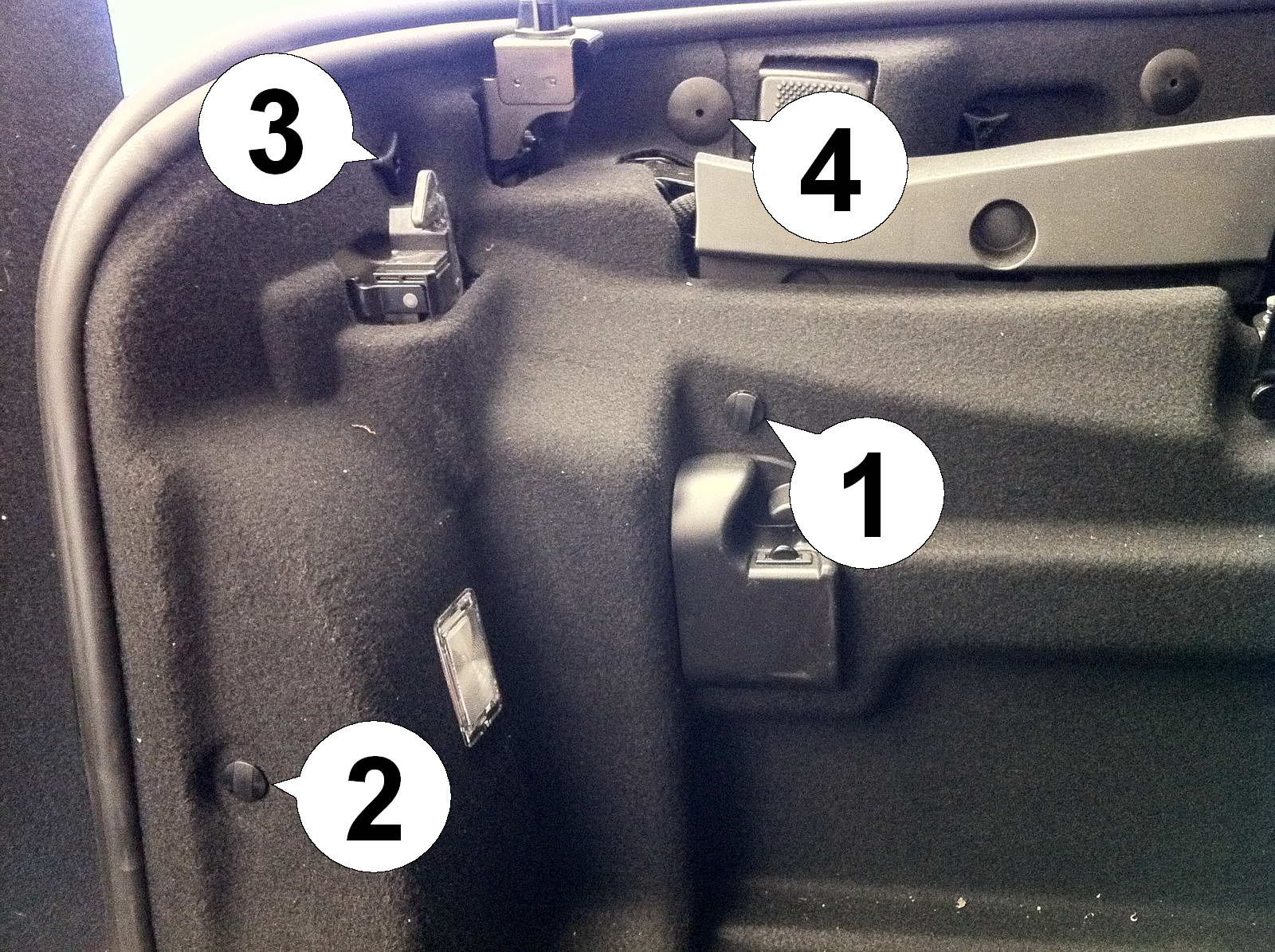

    4. Remove the two plastic bolts (1) and (2) by first pulling the center pieces out. Unscrew the three sided wingnut (3) and remove the carpet bolt (4) by pulling it straight out.

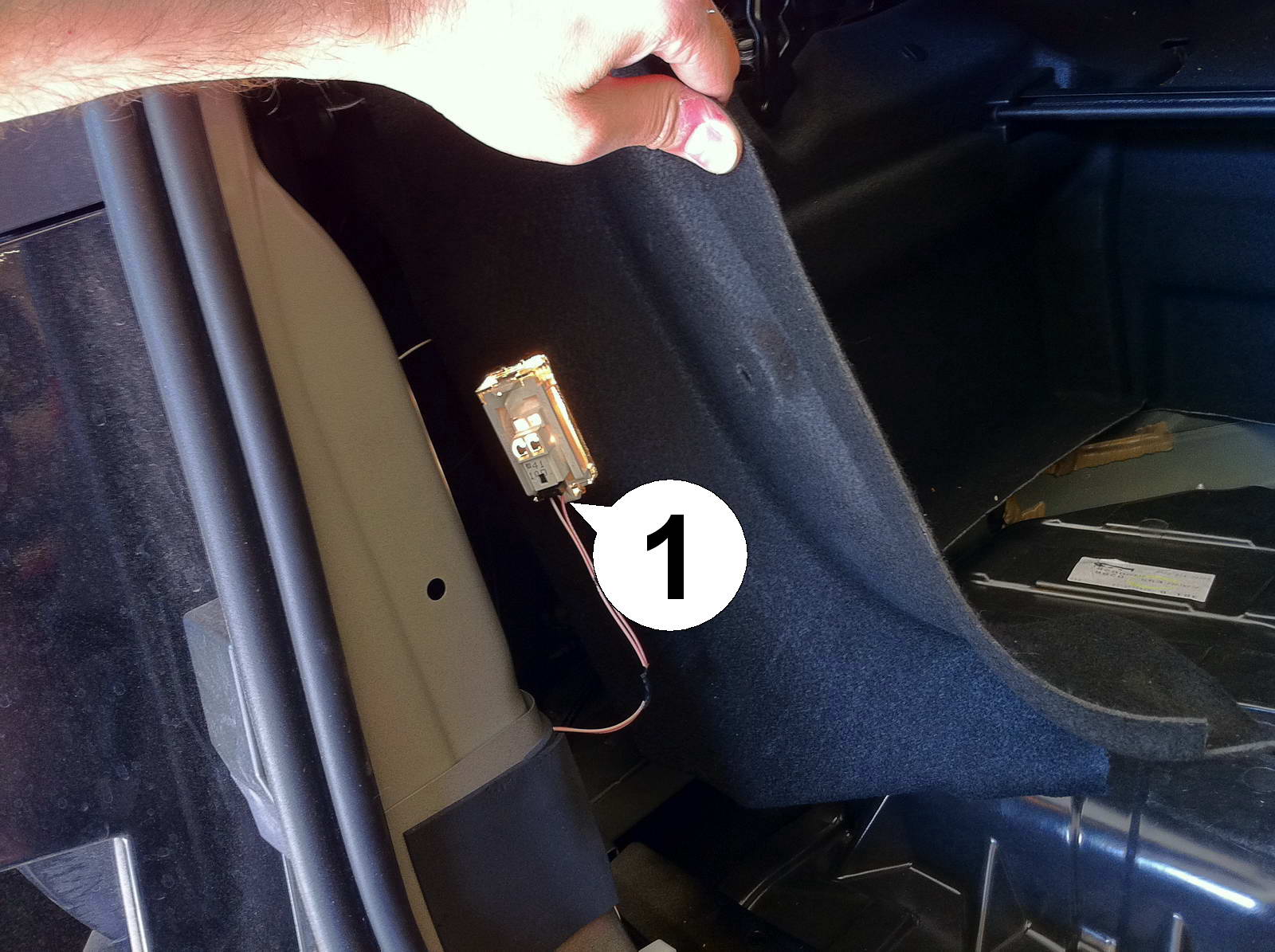

    5. Disconnect the small plug (1) from the trunk light. Push in the locking tab on the side while gently pulling on the plug.

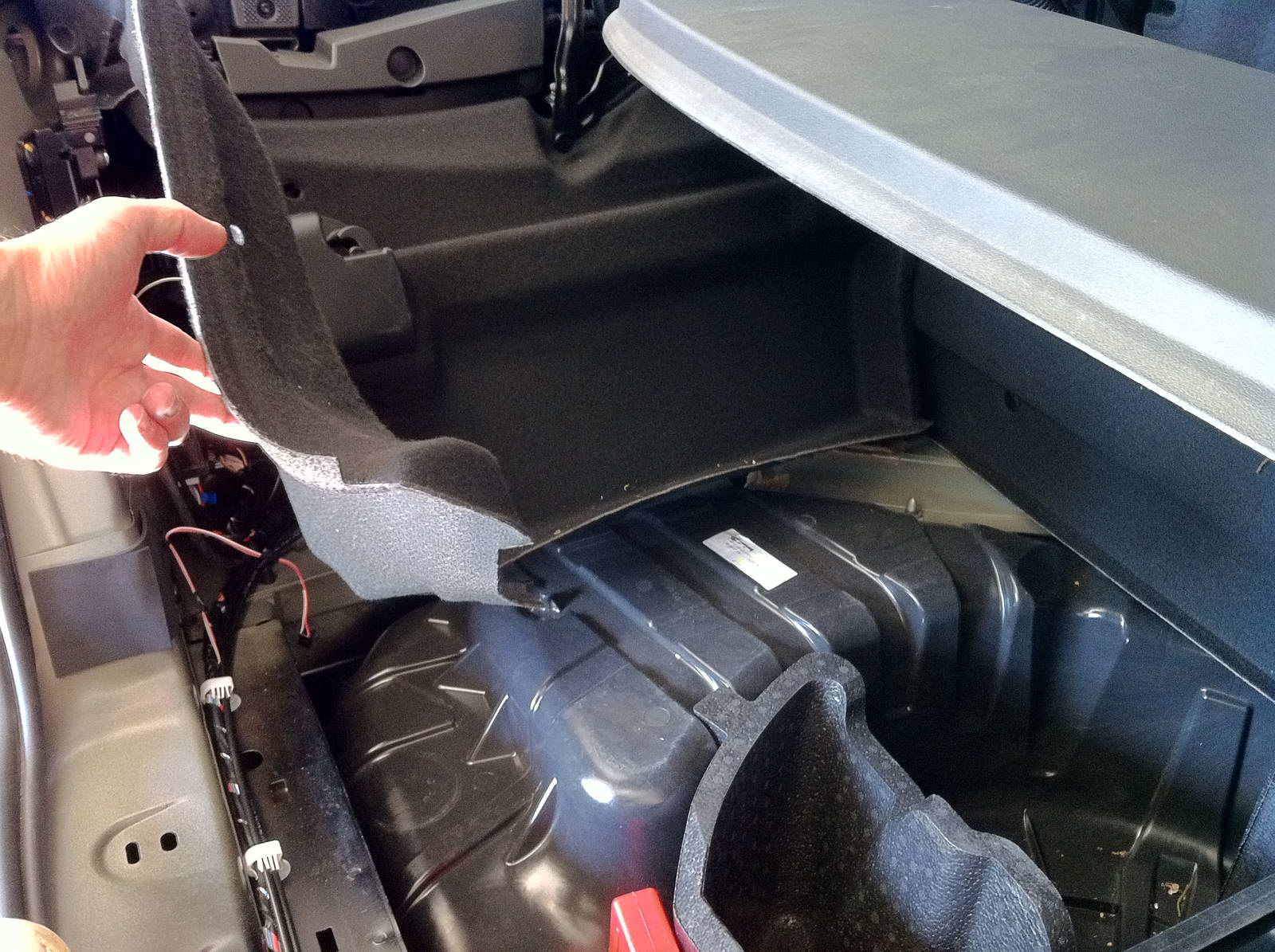

    6. Lift up the entire carpeted side cover.
    Installation - Steps 7-8

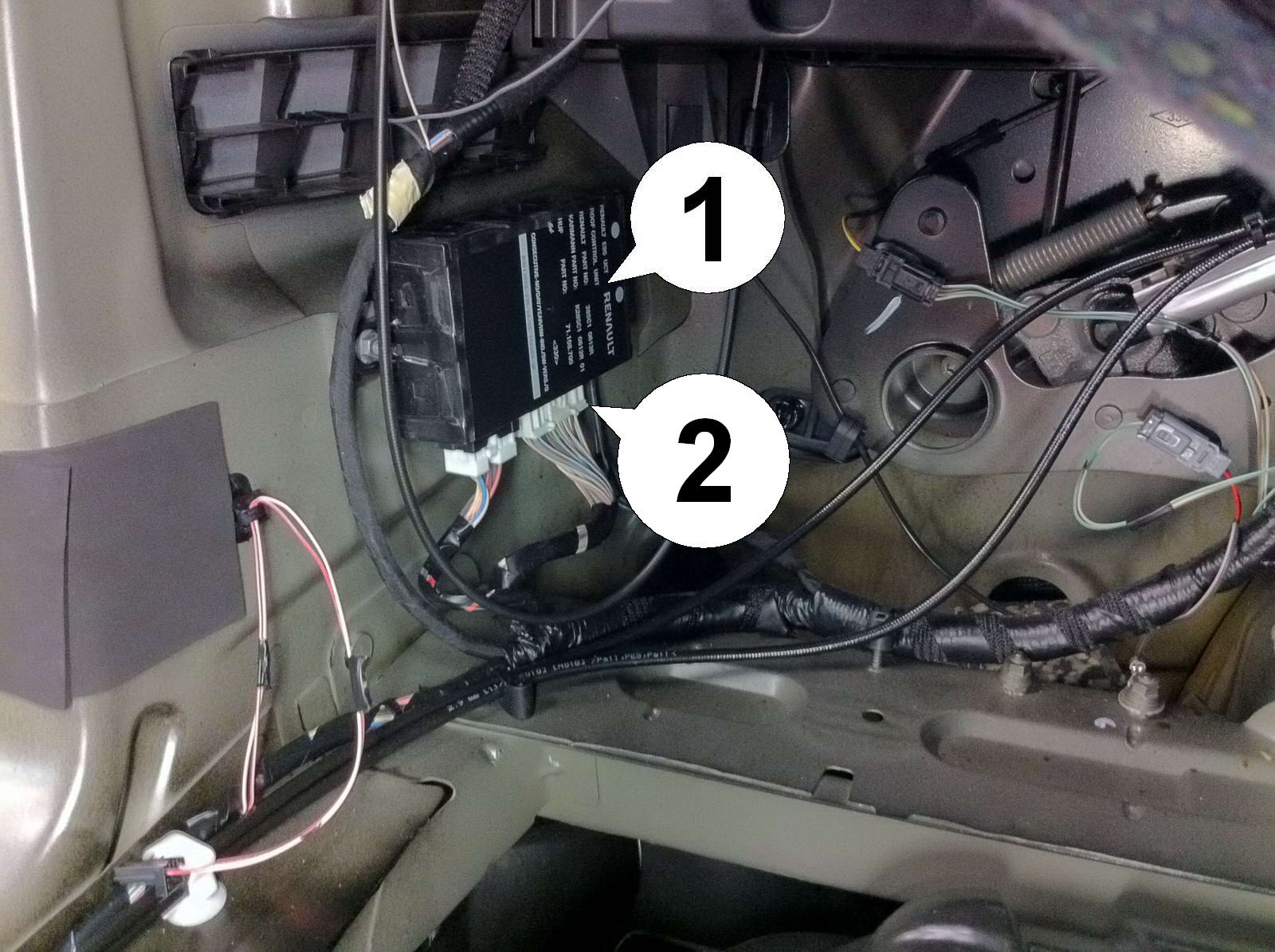

    7. The black box (1) in the corner is the convertible top control unit. Disconnect the rear (larger) white plug (2) on the bottom by pushing in hard on the locking tab on its front while pulling and wiggling it out.

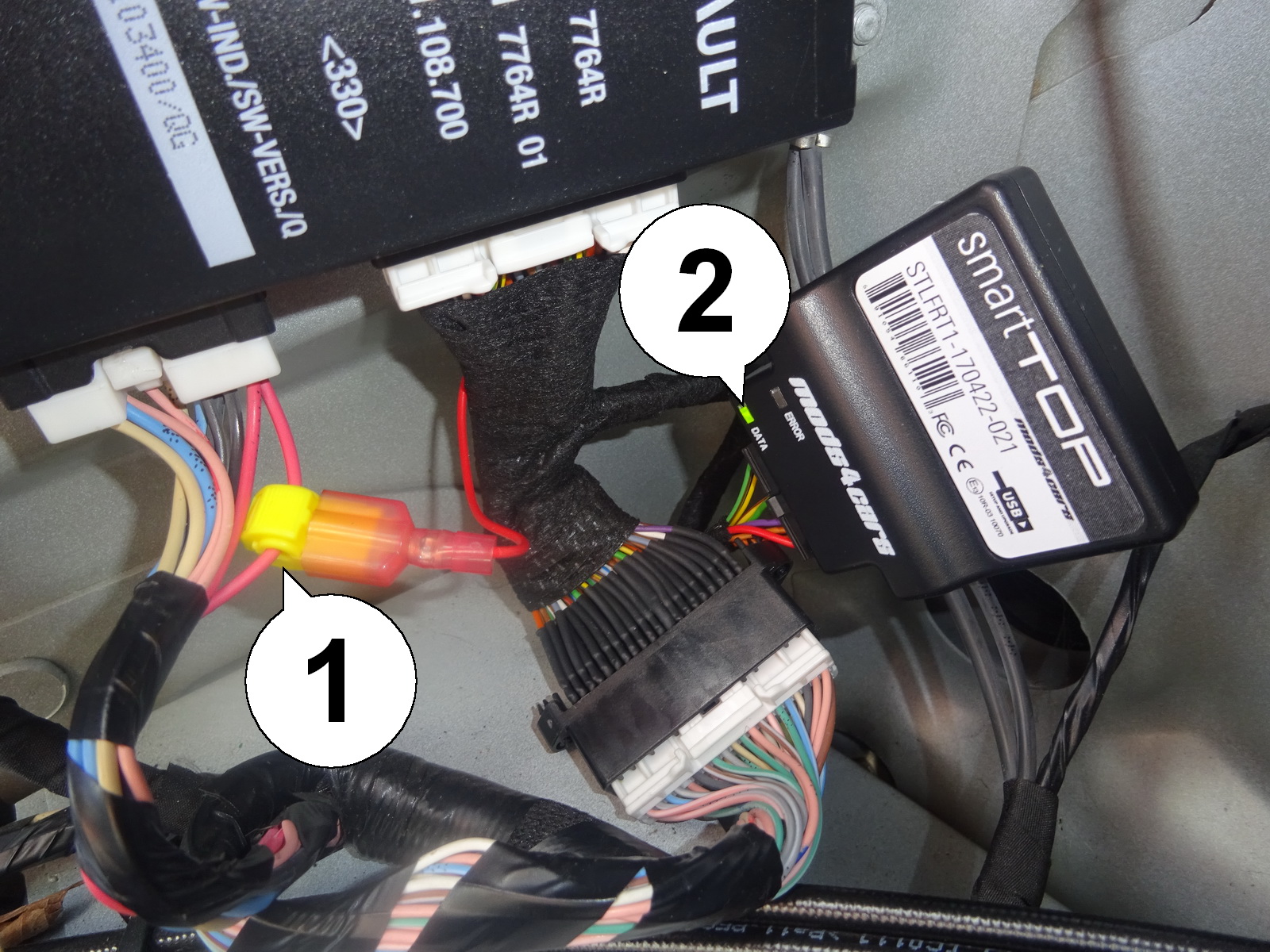

    8. Attach the yellow wire tap (1) to the first plain red wire (contact 1) of the 12 pin plug, then connect the red wire from the module harness here. Connect the white plug from the harness to the top control unit and the original plug removed in the previous step to the black socket on the harness. Lastly, connect the SmartTOP module (2) and tap unlock on the remote once. If the green LED on the module blinks, all connections are good. Using the supplied velcro pad, attach the module on top of or behind the top controller box. We recommend connecting the USB cord and running it to an accessible spot in the trunk in order to make later updates or configuration via laptop extremely easy.
