mods4cars product manual

OPERATION AND PROGRAMMING

STHFMZ4

Comfort Roof Control Module designed for

• Mercedes Benz C (A205)
• Mercedes Benz E (A238)
• Mercedes Benz S (A217)

Firmware v1.30 and up

Further information and manuals for all products can be found on our web site

w w w . m o d s 4 c a r s . c o m

PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.

We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product. Operation must be supervised and paid attention to in order to ensure that there are no objects or persons in range of moving parts due to the fact that top mechanics do not have pinch protection. Please study and be aware of the procedures to interrupt an ongoing operation in an emergency.

Important Information. READ BEFORE USING!
	PRINTING THIS MANUAL This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers. Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly. ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
	TROUBLE SHOOTING - NEED TO CONTACT US? If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size! We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support If you need to contact us, the best and fastest way to do so is by opening a support ticket there
	This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.

Detailed function description (Factory setting underlined)

Function 1 - MODULE MODE + MASTER SWITCH ( 0=OFF / 1=ON / 2=EXT / 3=EXP )
The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed while keeping all other function settings intact for when it is re-enabled later. • Setting 1 is the regular operation mode with emphasis on safety. Turning the ignition on or off as well as hitting any button on the remote at any time during remote operation immediately stops an ongoing top operation. • Setting 2 is the extended operation mode with emphasis on convenience. Starting or stopping the engine will not stop a top operation and it is possible to lock or unlock the doors one time from the remote while the top is moving. • Setting 3 is the operation mode designed for responsible experts. It allows the doors to be locked and unlocked more than once. This can come in handy if after getting out and locking the doors something was forgotten in the car and needs to be retrieved while the top is still running. Settings 2 and 3 require extra responsibility and caution to avoid injury by moving top parts to passengers not expecting the top to continue running after the engine is turned off and due to the fact that the first key press on the remote to lock or unlock the doors (or continued toggling of the door locks) will not stop the top! To abort the operation, press unlock while the doors are unlocked or lock while they are locked. EXTREMELY IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or risk of injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car in for routine maintenance or lending it to a third person! In case of any top malfunction NEVER take the car with the module still installed to an unsuspecting dealer! In such cases ALWAYS contact Mods4Cars for support first at www.mods4cars.com or completely uninstall the module before a dealer visit.

Function 1 - MODULE MODE + MASTER SWITCH ( 0=OFF / 1=ON / 2=EXT / 3=EXP )

The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed while keeping all other function settings intact for when it is re-enabled later.

• Setting 1 is the regular operation mode with emphasis on safety. Turning the ignition on or off as well as hitting any button on the remote at any time during remote operation immediately stops an ongoing top operation.
• Setting 2 is the extended operation mode with emphasis on convenience. Starting or stopping the engine will not stop a top operation and it is possible to lock or unlock the doors one time from the remote while the top is moving.
• Setting 3 is the operation mode designed for responsible experts. It allows the doors to be locked and unlocked more than once. This can come in handy if after getting out and locking the doors something was forgotten in the car and needs to be retrieved while the top is still running.

Settings 2 and 3 require extra responsibility and caution to avoid injury by moving top parts to passengers not expecting the top to continue running after the engine is turned off and due to the fact that the first key press on the remote to lock or unlock the doors (or continued toggling of the door locks) will not stop the top! To abort the operation, press unlock while the doors are unlocked or lock while they are locked.

EXTREMELY IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or risk of injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car in for routine maintenance or lending it to a third person! In case of any top malfunction NEVER take the car with the module still installed to an unsuspecting dealer! In such cases ALWAYS contact Mods4Cars for support first at www.mods4cars.com or completely uninstall the module before a dealer visit.

Function 2 - Console Switch One-Touch ( 0=OFF / 1=ON / 2=VALET )
This function allows full automatic top operation using the console switch. • Setting 1 enables One-Touch operation and comfort close for all windows. • Setting 2 disables opening of the top (Valet Mode), even from the remote! IMPORTANT: Setting 2 disables top operation completely! If the top unexpectedly does not work, check and make sure VALET mode is not turned on. Top operation with the console switch: • Holding down the switch (longer than 1 sec) in either direction will operate the top in manual mode for as long as the switch is held. • Tap open 1x: Open the top and bring the windows into the programmed position. • Tap open 2x: Open the top and bring the windows into the opposite position this one time. • Tap close 1x: Close top and windows. • Tap close 2x: Close only the top and leave the windows open. Comfort close for all windows: • Tap the top close switch while the top is already closed to roll all windows up. To interrupt an ongoing operation: Tap the console switch in any direction at any time (ignition must be on!) - even if the top was started by remote!

Function 2 - Console Switch One-Touch ( 0=OFF / 1=ON / 2=VALET )

This function allows full automatic top operation using the console switch.

• Setting 1 enables One-Touch operation and comfort close for all windows.
• Setting 2 disables opening of the top (Valet Mode), even from the remote!

IMPORTANT: Setting 2 disables top operation completely! If the top unexpectedly does not work, check and make sure VALET mode is not turned on.

Top operation with the console switch:
• Holding down the switch (longer than 1 sec) in either direction will operate the top in manual mode for as long as the switch is held.
• Tap open 1x: Open the top and bring the windows into the programmed position.
• Tap open 2x: Open the top and bring the windows into the opposite position this one time.
• Tap close 1x: Close top and windows.
• Tap close 2x: Close only the top and leave the windows open.

Comfort close for all windows:
• Tap the top close switch while the top is already closed to roll all windows up.

To interrupt an ongoing operation: Tap the console switch in any direction at any time (ignition must be on!) - even if the top was started by remote!

Function 3 - Console Switch Invert ( 0=OFF / 1=ON )
This function allows reversing the direction of the console switch. • Setting 1 activates reversed direction operation.

Function 4 - Remote Top ( 0=OFF / 1=HOLD / 2=TAP / 3=BOTH )
This function allows full automatic top operation with the original remote fob by pressing the lock and unlock buttons. • Setting 1 (Hold) allows opening and closing of the top by holding down the unlock and lock buttons on the remote. • Setting 2 (Tap) allows opening and closing of the top by tapping the unlock and lock buttons on the remote multiple times. • Setting 3 (Both) allows both of the methods to be used. Top operation with the remote fob using HOLD: • Hold unlock down for about 4 sec: Open the top and bring the windows into the programmed position. • Hold unlock down for about 4 sec, let go and tap open again briefly: Open the top and bring the windows into the opposite position. • Hold lock down for about 4 sec: Close top and windows. • Hold lock down for about 4 sec, let go and tap close again briefly: Close only the top while leaving the windows down. Top operation with the remote fob using TAPS: • Tap unlock 3x in 1 sec intervals: Open the top and bring the windows into the programmed position. • Tap unlock 4x in 1 sec intervals: Open the top and bring the windows into the opposite position this one time. • Tap lock 3x in 1 sec intervals: Close top and windows. • Tap lock 4x in 1 sec intervals: Close only the top while leaving the windows down. To interrupt an ongoing operation: Tap unlock or lock again. IMPORTANT: Keep in mind that Extended and Expert modes allow one time change (or multiple changes) of the door locks! In such case a second key press on the same button will be necessary to stop the top. IMPORTANT: The HOLD option only works in proximity to the car while the TAPS option works up to the full range of the RF signal of the remote fob.

Function 4 - Remote Top ( 0=OFF / 1=HOLD / 2=TAP / 3=BOTH )

This function allows full automatic top operation with the original remote fob by pressing the lock and unlock buttons.

• Setting 1 (Hold) allows opening and closing of the top by holding down the unlock and lock buttons on the remote.
• Setting 2 (Tap) allows opening and closing of the top by tapping the unlock and lock buttons on the remote multiple times.
• Setting 3 (Both) allows both of the methods to be used.

Top operation with the remote fob using HOLD:
• Hold unlock down for about 4 sec: Open the top and bring the windows into the programmed position.
• Hold unlock down for about 4 sec, let go and tap open again briefly: Open the top and bring the windows into the opposite position.
• Hold lock down for about 4 sec: Close top and windows.
• Hold lock down for about 4 sec, let go and tap close again briefly: Close only the top while leaving the windows down.

Top operation with the remote fob using TAPS:
• Tap unlock 3x in 1 sec intervals: Open the top and bring the windows into the programmed position.
• Tap unlock 4x in 1 sec intervals: Open the top and bring the windows into the opposite position this one time.
• Tap lock 3x in 1 sec intervals: Close top and windows.
• Tap lock 4x in 1 sec intervals: Close only the top while leaving the windows down.

To interrupt an ongoing operation: Tap unlock or lock again. IMPORTANT: Keep in mind that Extended and Expert modes allow one time change (or multiple changes) of the door locks! In such case a second key press on the same button will be necessary to stop the top.

IMPORTANT: The HOLD option only works in proximity to the car while the TAPS option works up to the full range of the RF signal of the remote fob.

Function 5 - Remote Windows ( 0=OFF / 1=HOLD / 2=TAP / 3=BOTH )
This function allows separate control of the windows with the original remote fob by pressing the lock and unlock buttons. • Setting 1 (Hold) allows opening and closing of the windows by holding down the unlock and lock buttons on the remote. • Setting 2 (Tap) allows opening and closing of the windows by tapping the unlock and lock buttons on the remote multiple times. • Setting 3 (Both) allows both of the methods to be used. Window operation with the remote fob using HOLD: • Hold unlock down for about 2 sec: Open all windows. • Hold lock down for about 2 sec: Close all windows. Window operation with the remote fob using TAPS: • Tap unlock 2x in 1 sec intervals: Open all windows. • Tap lock 2x in 1 sec intervals: Close all windows. IMPORTANT: The HOLD option only works in proximity to the car while the TAPS option works up to the full range of the RF signal of the remote fob.

Function 5 - Remote Windows ( 0=OFF / 1=HOLD / 2=TAP / 3=BOTH )

This function allows separate control of the windows with the original remote fob by pressing the lock and unlock buttons.

• Setting 1 (Hold) allows opening and closing of the windows by holding down the unlock and lock buttons on the remote.
• Setting 2 (Tap) allows opening and closing of the windows by tapping the unlock and lock buttons on the remote multiple times.
• Setting 3 (Both) allows both of the methods to be used.

Window operation with the remote fob using HOLD:
• Hold unlock down for about 2 sec: Open all windows.
• Hold lock down for about 2 sec: Close all windows.

Window operation with the remote fob using TAPS:
• Tap unlock 2x in 1 sec intervals: Open all windows.
• Tap lock 2x in 1 sec intervals: Close all windows.

IMPORTANT: The HOLD option only works in proximity to the car while the TAPS option works up to the full range of the RF signal of the remote fob.

Function 6 - Keyless Top ( 0=OFF / 1=CLOSE ONLY / 2=OPEN/CLOSE )
This function allows to close and open the convertible top by touching the door handle (requires Keyless Entry option!) • Setting 1 only allows closing the top. • Setting 2 allows closing and opening. Top operation with the Keyless Entry door handle: • Tap thumb on lock sensor 2x in 1 sec intervals, then hold hand inside door handle: Open the top and bring the windows into the programmed position. • Tap thumb on lock sensor 3x in 1 sec intervals: Close top and windows. • Tap thumb on lock sensor 4x in 1 sec intervals: Close only the top while leaving the windows down. • To get in the car without interrupting the opening top, grab the door handle and open the door quickly. • Make sure to leave about 2 seconds between taps and that there is a clicking sound after each tap. Otherwise the input was not recognized. To stop an ongoing operation: Tap the lock sensor again. Keep in mind that Extended and Expert modes allow the doors to be locked while the top continues. In such case tap the lock sensor a second time.

Function 6 - Keyless Top ( 0=OFF / 1=CLOSE ONLY / 2=OPEN/CLOSE )

This function allows to close and open the convertible top by touching the door handle (requires Keyless Entry option!)

• Setting 1 only allows closing the top.
• Setting 2 allows closing and opening.

Top operation with the Keyless Entry door handle:
• Tap thumb on lock sensor 2x in 1 sec intervals, then hold hand inside door handle: Open the top and bring the windows into the programmed position.
• Tap thumb on lock sensor 3x in 1 sec intervals: Close top and windows.
• Tap thumb on lock sensor 4x in 1 sec intervals: Close only the top while leaving the windows down.

• To get in the car without interrupting the opening top, grab the door handle and open the door quickly.
• Make sure to leave about 2 seconds between taps and that there is a clicking sound after each tap. Otherwise the input was not recognized.

To stop an ongoing operation: Tap the lock sensor again. Keep in mind that Extended and Expert modes allow the doors to be locked while the top continues. In such case tap the lock sensor a second time.

Function 7 - Window positions after opening top ( 0=NONE / 1=FRONT / 2=ALL )
This function determines the position of the windows after an automatic top opening run. • Setting 0 leaves all windows down. • Setting 1 raises the front windows only. • Setting 2 raises all windows.

Function 8 - AirCap memory ( 0=OFF / 1=ON / 2=UP )
This function memorized the last used position of the AirCap and restores it after opening the top by console switch or remote. • Setting 1 raises the AirCap when the top is opened via console switch or remote if it was raised before. Afterwards it can be lowered/raised manually as usual. • Setting 1 always raises the AirCap when the top is opened via console switch or remote. Afterwards it can be lowered/raised manually as usual. Important: The AirCap only works with the ignition on! The module memorizes the desired position when using the remote to open the top and restores it immediately when the ignition is turned on.

Function 8 - AirCap memory ( 0=OFF / 1=ON / 2=UP )

This function memorized the last used position of the AirCap and restores it after opening the top by console switch or remote.

• Setting 1 raises the AirCap when the top is opened via console switch or remote if it was raised before. Afterwards it can be lowered/raised manually as usual.
• Setting 1 always raises the AirCap when the top is opened via console switch or remote. Afterwards it can be lowered/raised manually as usual.

Important: The AirCap only works with the ignition on! The module memorizes the desired position when using the remote to open the top and restores it immediately when the ignition is turned on.

Function 9 - Window switch One-Touch ( 0=OFF / 1=CLOSE / 2=BOTH )
This function allows to program the all-windows switch in the center console to raise (and lower) all windows using One-Touch. By factory this switch only offers One-Touch down (on most models). On some models the one-touch down feature is missing from the factory. Only use setting 2 in such cases to add one-touch down operation. • Setting 1 allows One-Touch closing of all 4 windows. • Setting 2 allows One-Touch closing and opening of all 4 windows. To close all windows at the same time, pull this switch up briefly and let go (to open, push down briefly). To interrupt an operation, tap the switch again in any direction.

Function 9 - Window switch One-Touch ( 0=OFF / 1=CLOSE / 2=BOTH )

This function allows to program the all-windows switch in the center console to raise (and lower) all windows using One-Touch. By factory this switch only offers One-Touch down (on most models).
On some models the one-touch down feature is missing from the factory. Only use setting 2 in such cases to add one-touch down operation.

• Setting 1 allows One-Touch closing of all 4 windows.
• Setting 2 allows One-Touch closing and opening of all 4 windows.

To close all windows at the same time, pull this switch up briefly and let go (to open, push down briefly). To interrupt an operation, tap the switch again in any direction.

Function 10 - Hazard flashers ( 0=OFF / 1=ON / 2=ALT )
This function activates the flashers (on some models only side mirrors and/or rear) during remote controlled top operation or when the top continues running after the ignition has been turned off. • Setting 1 flashes the blinkers similar to the regular emergency flashing signal. • Setting 2 flashes the blinkers in a left-right alternating pattern.

Function 11 - Comfort Wipers ( 0=OFF / 1=1x / 2=2x )
This function activates a delayed wipe cycle after using the sprayers. This way any running water drops will be automatically removed. • Setting 1 wipes once after 10 seconds. • Setting 2 wipes twice in intervals of 10 seconds.

Programming
	This module offers several different functions, each with several settings. All functions and settings are described in detail above and a quick reference table (matrix) can be found at the end of this manual. We recommend printing the matrix and storing it in the glove box! To activate the programming mode, turn the ignition fully ON (no need to start the engine), push and hold the brake pedal and then hold down the convertible top switch (1) in the direction the top is already in (open when the top is open, close when the top is closed) until both blinker arrows in the cluster light up. Now let go. The module shows the current function via the left arrow (2) and that function's setting via right arrow (3). As an example, the left arrow blinks 1x and the right arrow blinks 2x: Function 1 is currently set to setting 2. Please note: If the analog clock is installed, the function (little hand) and setting (big hand) are shown on the clock as well. To select the function, tap the top switch briefly. To change the setting of the selected function, tap the all-windows switch in the center console briefly. Pull briefly to advance to the next function, push briefly to return to the last one. After reading the current function and setting via the blinker signals, pull the all-windows switch up briefly to increase the setting, push the all-windows switch down to decrease it. To end programming mode, either turn the ignition off or hold down the top switch in either direction for a longer time (about 5 sec) until both arrows light up. Programming mode also terminates automatically after 60 sec. of inactivity. • Shortcut to toggle Main Switch: With the ignition on as above, hold and keep the top switch pressed in the direction the top is already in (ignoring the first blinker signal) for a full 10 seconds, until the left arrow blinks once by itself. The right arrow will then indicate the Function 1 (Main Switch) setting (no blinks=OFF, 1x=ON, 2x=EXT, 3x=EXP). • Shortcut to toggle Valet Mode: With the ignition on as above and the top closed, tap the top-close switch quickly 10 times in a row, until the left arrow blinks twice by itself. The right arrow will then indicate the Function 2 (One Touch) setting (no blinks=OFF, 1x=ON, 2x=VALET).

Programming

This module offers several different functions, each with several settings. All functions and settings are described in detail above and a quick reference table (matrix) can be found at the end of this manual. We recommend printing the matrix and storing it in the glove box!

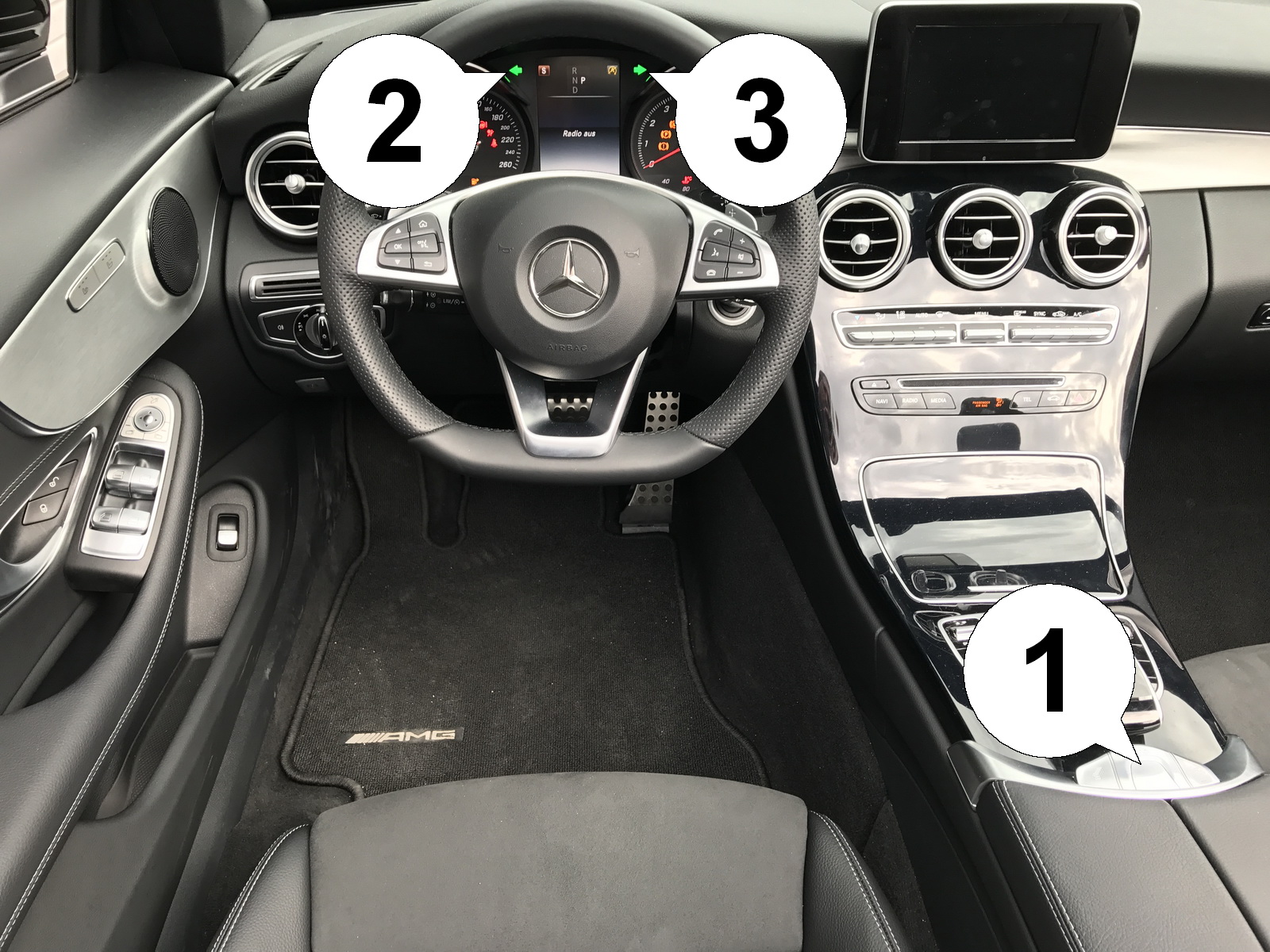

To activate the programming mode, turn the ignition fully ON (no need to start the engine), push and hold the brake pedal and then hold down the convertible top switch (1) in the direction the top is already in (open when the top is open, close when the top is closed) until both blinker arrows in the cluster light up. Now let go.
The module shows the current function via the left arrow (2) and that function's setting via right arrow (3). As an example, the left arrow blinks 1x and the right arrow blinks 2x: Function 1 is currently set to setting 2.
Please note: If the analog clock is installed, the function (little hand) and setting (big hand) are shown on the clock as well.
To select the function, tap the top switch briefly. To change the setting of the selected function, tap the all-windows switch in the center console briefly. Pull briefly to advance to the next function, push briefly to return to the last one. After reading the current function and setting via the blinker signals, pull the all-windows switch up briefly to increase the setting, push the all-windows switch down to decrease it.

To end programming mode, either turn the ignition off or hold down the top switch in either direction for a longer time (about 5 sec) until both arrows light up. Programming mode also terminates automatically after 60 sec. of inactivity.

• Shortcut to toggle Main Switch: With the ignition on as above, hold and keep the top switch pressed in the direction the top is already in (ignoring the first blinker signal) for a full 10 seconds, until the left arrow blinks once by itself. The right arrow will then indicate the Function 1 (Main Switch) setting (no blinks=OFF, 1x=ON, 2x=EXT, 3x=EXP).
• Shortcut to toggle Valet Mode: With the ignition on as above and the top closed, tap the top-close switch quickly 10 times in a row, until the left arrow blinks twice by itself. The right arrow will then indicate the Function 2 (One Touch) setting (no blinks=OFF, 1x=ON, 2x=VALET).

Function/Setting Matrix (green fields are defaults)
Product: STHFMZ4 - SmartTOP for Mercedes Benz C (A205) / E (A238) / S (A217) Firmware: v1.30 and up
	SETTING 0	SETTING 1	SETTING 2	SETTING 3
Function 1	OFF	ON	EXT	EXP
MODULE MODE + MASTER SWITCH	Module Disabled	Module Enabled	Extended Mode READ MANUAL!	Expert Mode READ MANUAL!
Function 2	OFF	ON	VALET
Console Switch One-Touch	Factory behavior	One-Touch operation	Valet Mode
Function 3	OFF	ON
Console Switch Invert	Factory Behavior	Switch inverted
Function 4	OFF	HOLD	TAP	BOTH
Remote Top	No remote functions	Hold remote for 3 sec.	Tap remote 3x	Hold and Tap enabled
Function 5	OFF	HOLD	TAP	BOTH
Remote Windows	No remote functions	Hold remote for 2 sec.	Tap remote 2x	Hold and Tap enabled
Function 6	OFF	CLOSE ONLY	OPEN/CLOSE
Keyless Top	Factory behavior	Top can be closed	Top can be opened and closed
Function 7	NONE	FRONT	ALL
Window positions after opening top	All windows down	Front windows up	All windows up
Function 8	OFF	ON	UP
AirCap memory	Factory behavior	Memorize position	Aleays Up
Function 9	OFF	CLOSE	BOTH
Window switch One-Touch	Factory behavior	One-Touch Close	One-Touch Close and Open
Function 10	OFF	ON	ALT
Hazard flashers	Disabled	Enabled	Alternating
Function 11	OFF	1x	2x
Comfort Wipers	Factory behavior	1x delayed wipe	2x delayed wipe
