INSTALLATION


STHBMN1

Comfort Roof Control Module for

  • McLaren 650S
  • McLaren 12C
  • McLaren 570S
  • McLaren 675LT

    v1


    • Further information and manuals for all products can be found on our web site

    w w w . m o d s 4 c a r s . c o m


    We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product.
    PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.
    Important Information. READ BEFORE INSTALLING!
    PRINTING THIS MANUAL
    This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers.

    Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly.

    ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
    TROUBLE SHOOTING - NEED TO CONTACT US?
    If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size!
    We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support

    If you need to contact us, the best and fastest way to do so is by opening a support ticket there

    This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.
    IMPORTANT TROUBLESHOOTING TIPS

    If the top does not work properly or at all after installing the module, these tips can be very helpful:

    • 1) Turn Function 1 (Main Switch) off (Setting 0). The module will be completely passive. If the problem still persists and the top won't work, check all connections. Please also check the green DATA LED on the module!

    • 2) Function 2 now has a valet mode (Setting 2) on many modules. Valet mode completely disables opening of the top. Check the setting for function 2 and make sure the module is NOT in valet mode!

    IMPORTANT: Not all modules have the valet mode! Please check the Operation and Programming Manual!
    FUNCTION OF THE DATA LED

    The DATA LED shows the module status and helps troubleshooting issues during installation:

    • When the ignition is ON: The LED should BLINK (flash) in a regular pattern (about 1x per second). This indicates that the module is receiving data and should work OK.

    • When the ignition is OFF: The LED should BLINK (flash) as long as the data bus is still active and turn off after a while (max 5 min) indicating that the car has entered stand-by (sleep) mode.

    • If the LED is permanently lit with the ignition ON, the module is NOT receiving data from the top controller and all connectors should be checked.

    • If the LED does NOT light up at all when turning the ignition ON, the module is either not getting power or not receiving ANY data. All connectors should be checked.
    Installation - Steps 1-3

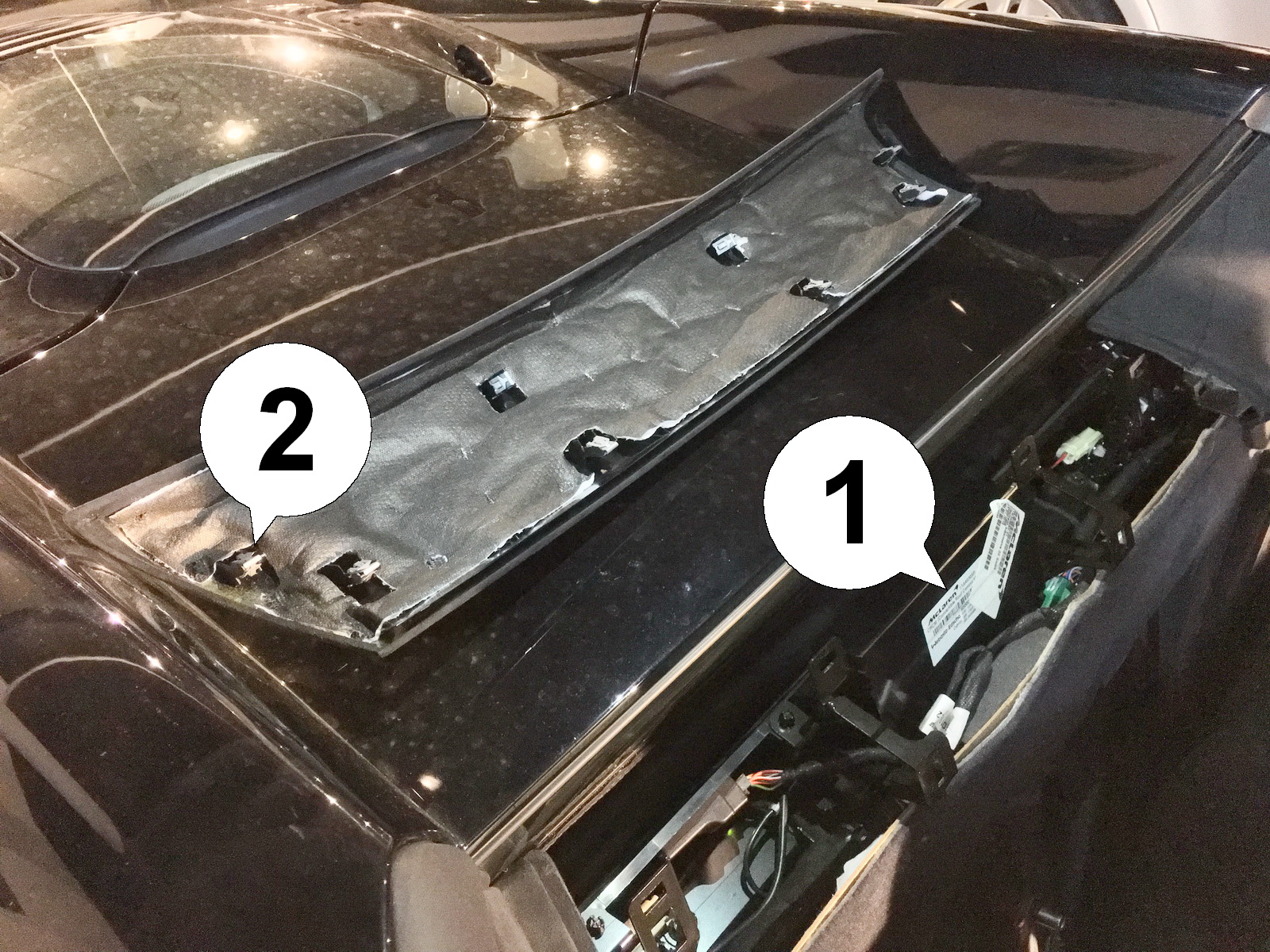

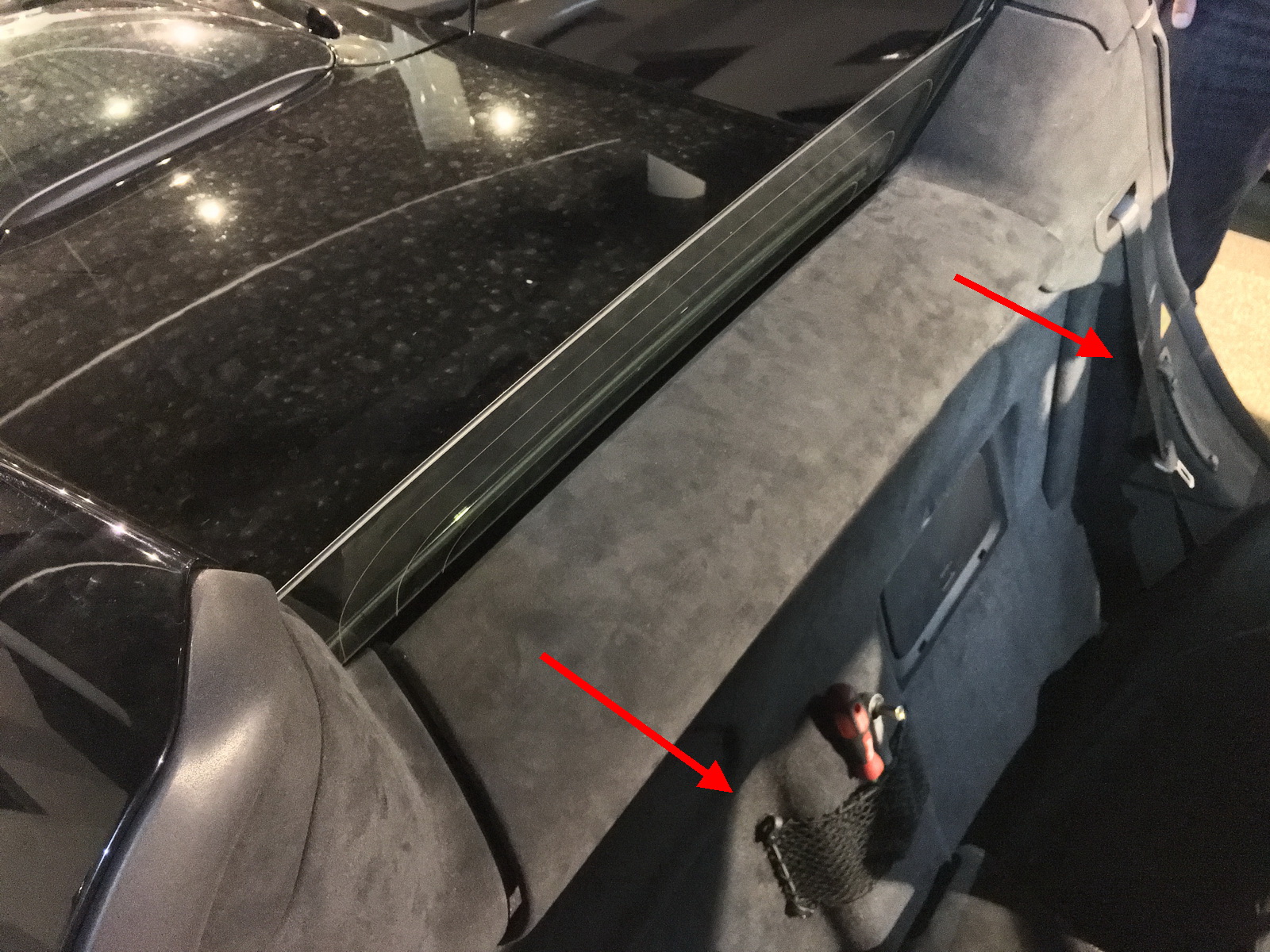

    1. Fully open the convertible top. Pull forward and slightly upward on the cover piece in the middle. It is only snapped into place.
    2. The convertible top controller (1) is located directly under the just removed piece. Take note of the metal clips (2) on the piece. There should be 8 of them. If some of them are stuck in the receptacle instead of the cover piece, remove them and install them as shown here.

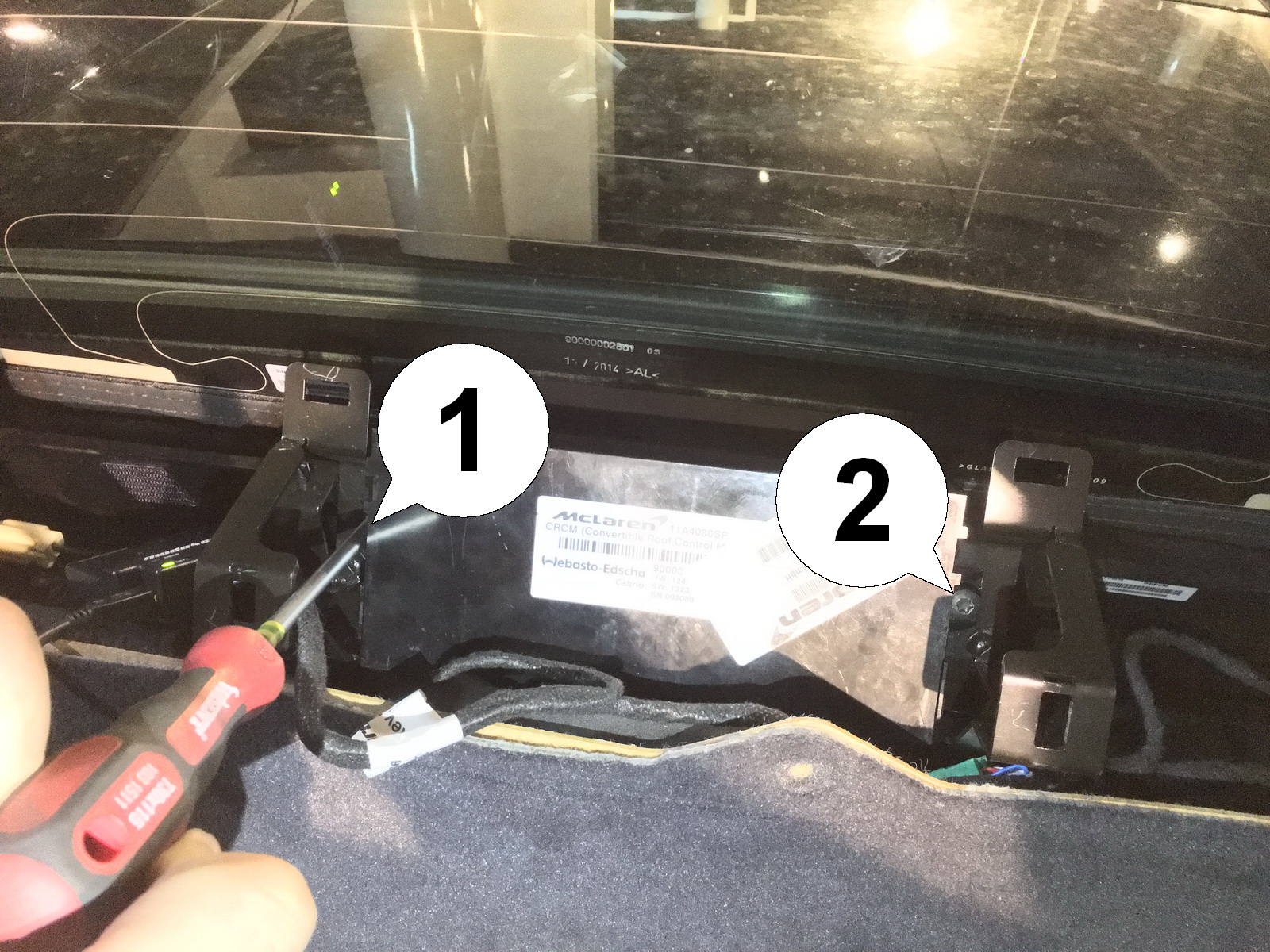

    3. Remove the torx screws (1) and (2) on both sides of the top control unit.
    Installation - Steps 4-6

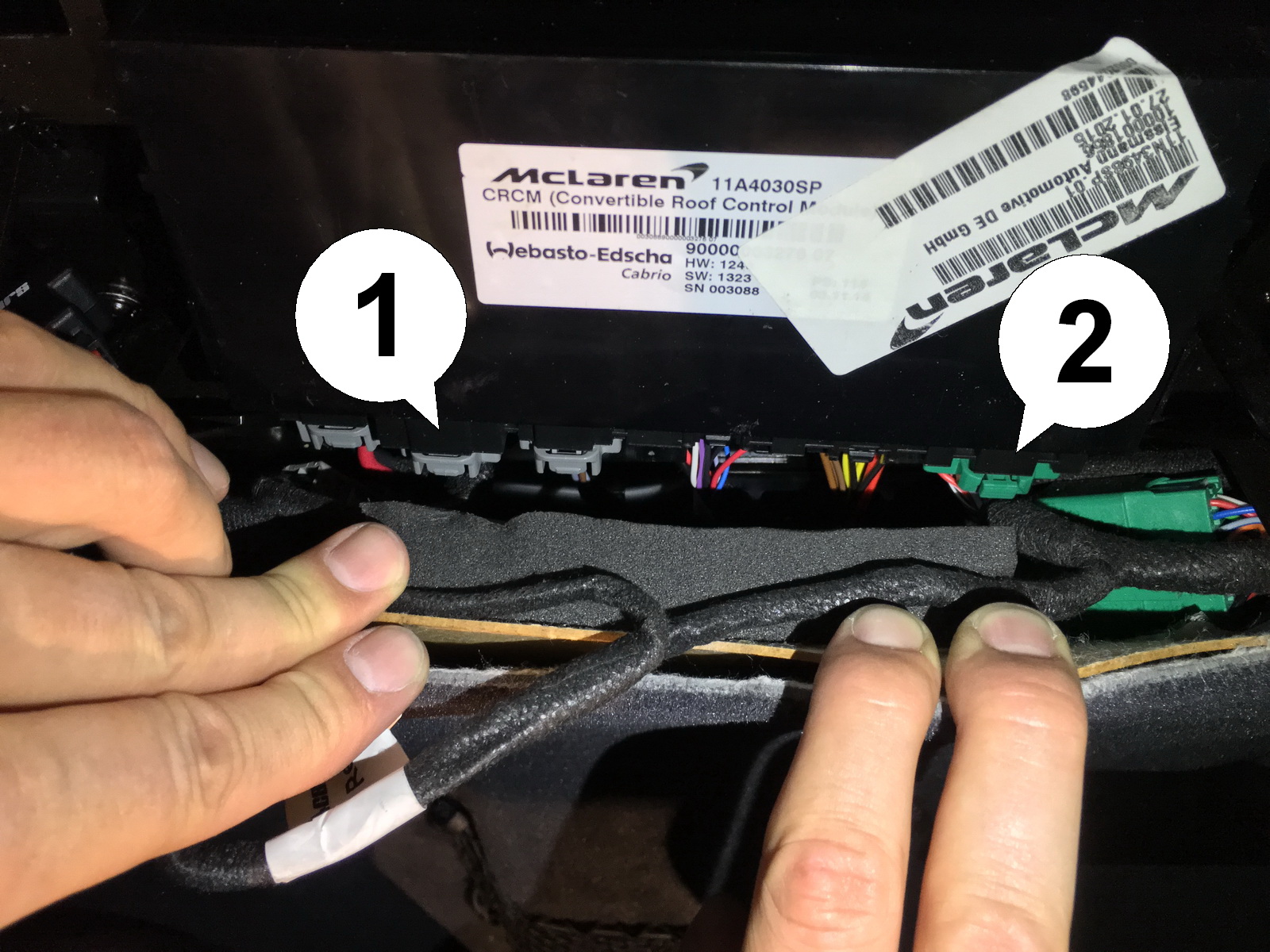

    4. Pull the top control unit out as far as possible, then replace the 2nd from the left (1) grey connector and the rightmost (2) green connector with the ones from the module harness. Mate the original connectors with the matching sockets on the harness, making sure they securely latch into place. Connect the module to the harness and press the unlock button. The green LED on the module should flash.

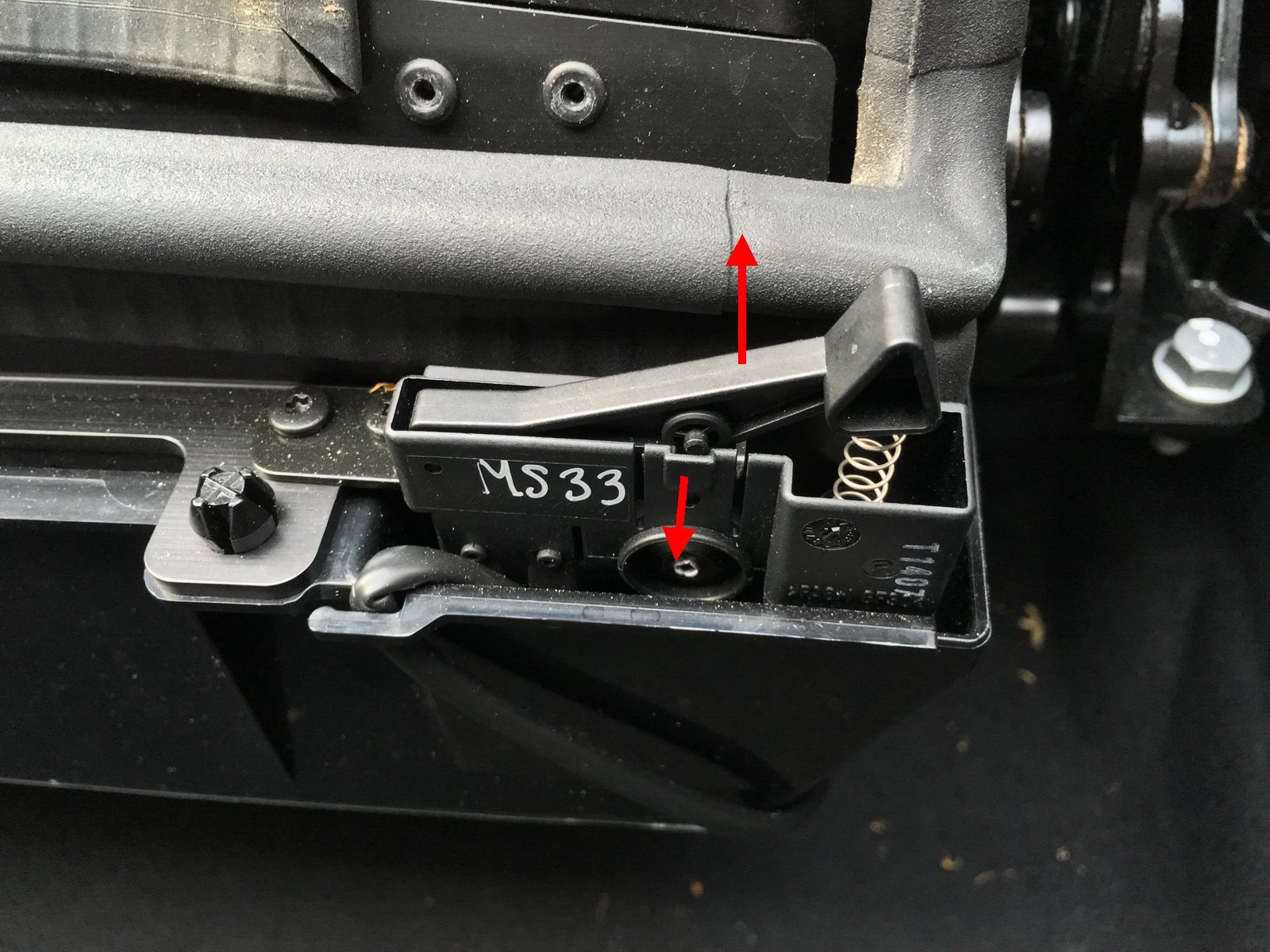

    5. Reassemble everything, then start closing the top and interrupt it just when the rear lid is open. Find the alarm contact on the right side of the car. Remove the lever.

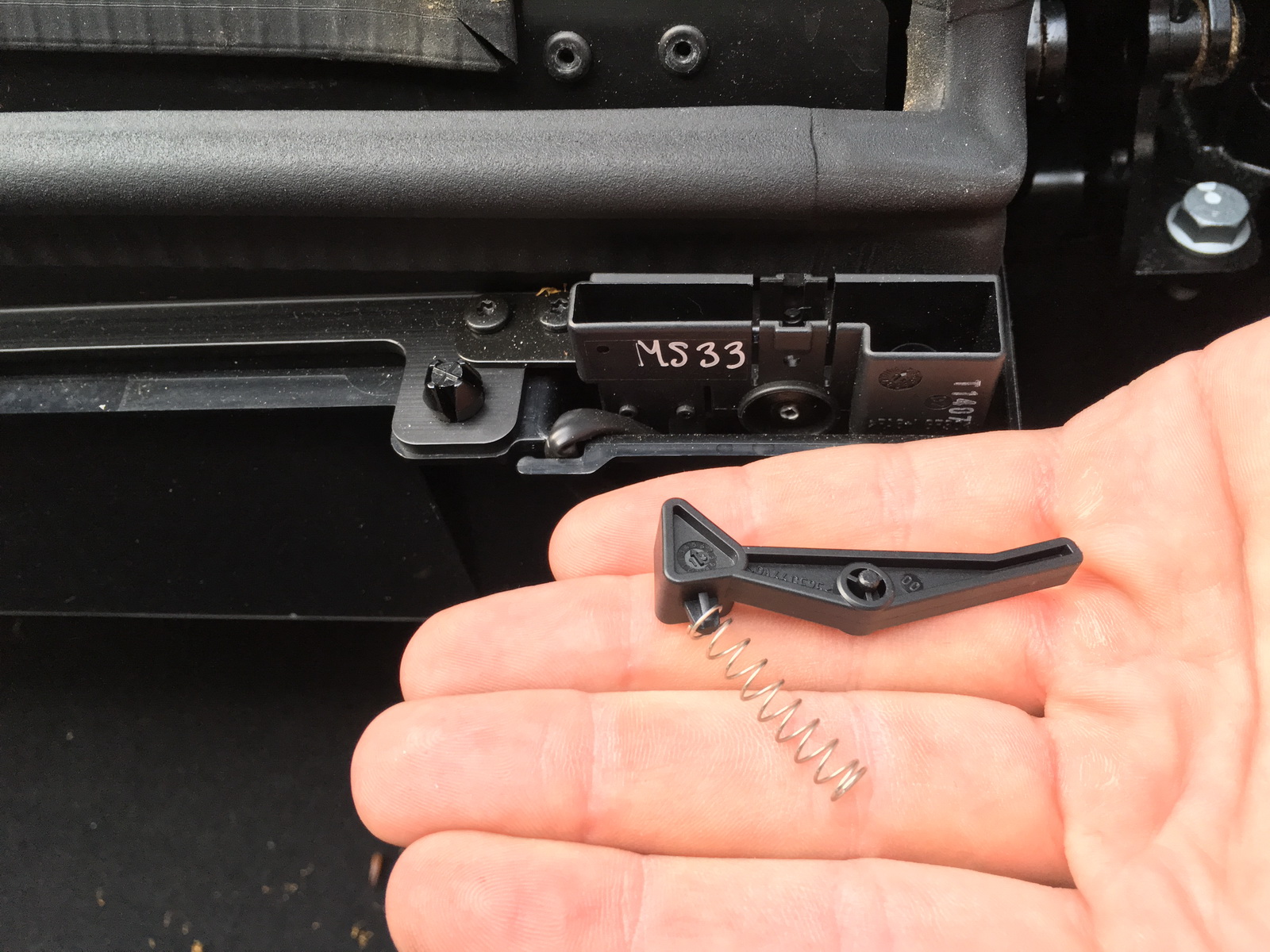

    6. Removing the lever will have no negative impact at all. Now the alarm simply does not monitor the convertible top deck lid any longer which makes it possible to close the roof with the remote without setting off the alarm. Lever and spring should be stored for reverting back to stock at a later time.
