INSTALLATION


STLFMI1

Comfort Roof Control Module for

  • GranCabrio (GranTurismo Convertible)

    v1.0


    • Further information and manuals for all products can be found on our web site

    w w w . m o d s 4 c a r s . c o m


    We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product.
    PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.
    Important Information. READ BEFORE INSTALLING!
    PRINTING THIS MANUAL
    This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers.

    Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly.

    ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
    TROUBLE SHOOTING - NEED TO CONTACT US?
    If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size!
    We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support

    If you need to contact us, the best and fastest way to do so is by opening a support ticket there

    This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.
    IMPORTANT TROUBLESHOOTING TIPS

    If the top does not work properly or at all after installing the module, these tips can be very helpful:

    • 1) Turn Function 1 (Main Switch) off (Setting 0). The module will be completely passive. If the problem still persists and the top won't work, check all connections. Please also check the green DATA LED on the module!

    • 2) Function 2 now has a valet mode (Setting 2) on many modules. Valet mode completely disables opening of the top. Check the setting for function 2 and make sure the module is NOT in valet mode!

    IMPORTANT: Not all modules have the valet mode! Please check the Operation and Programming Manual!
    Installation - Steps 1-3

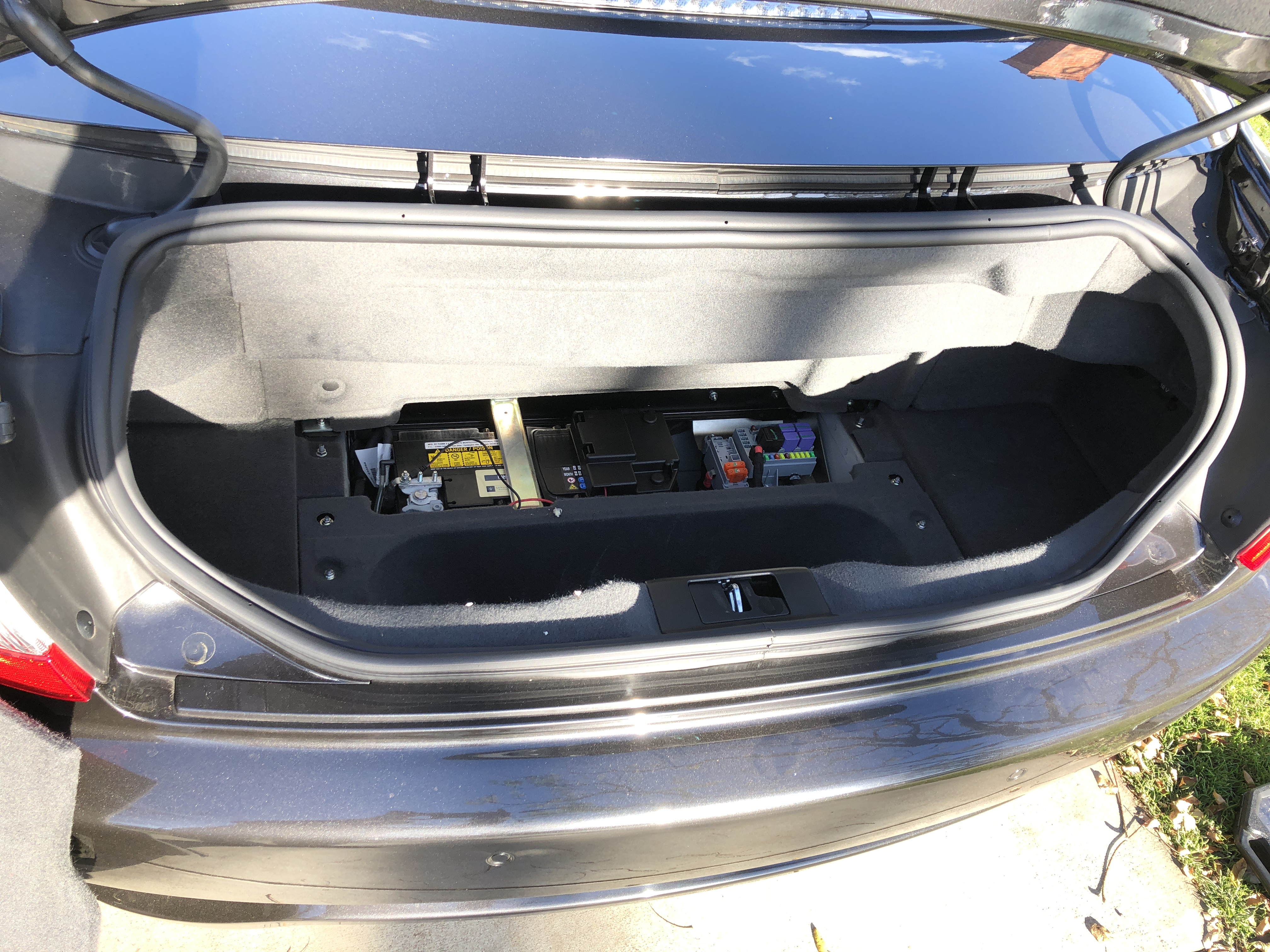

    1. Before installing the kit, fully close the convertible top, then turn the ignition off. Open the trunk and remove the bottom.

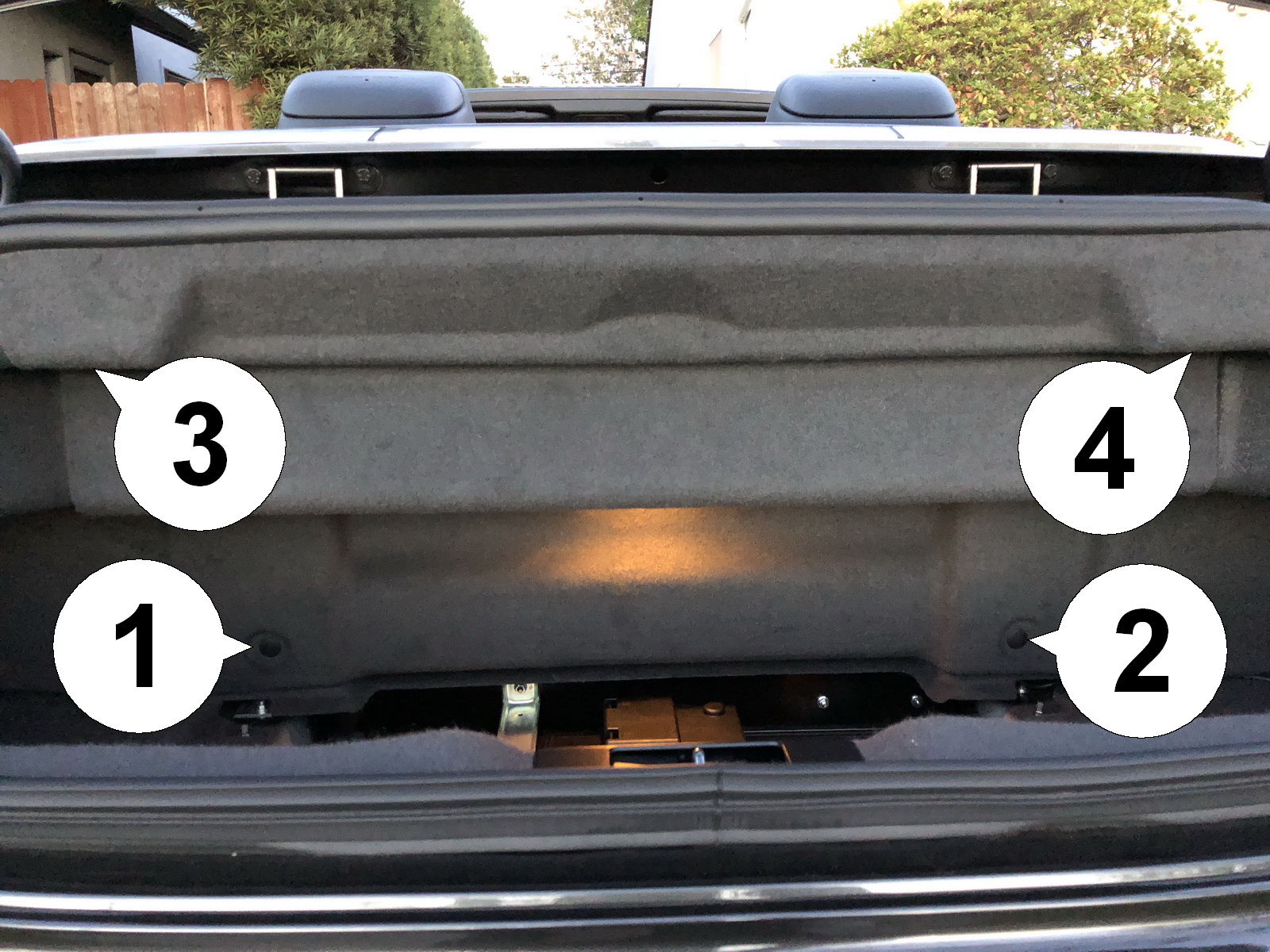

    2. Remove the cover piece held in place by 4 plastic rivets (1) through (4) by grabbing under it at each location and simply pulling. The plastic rivets come out quite easily.

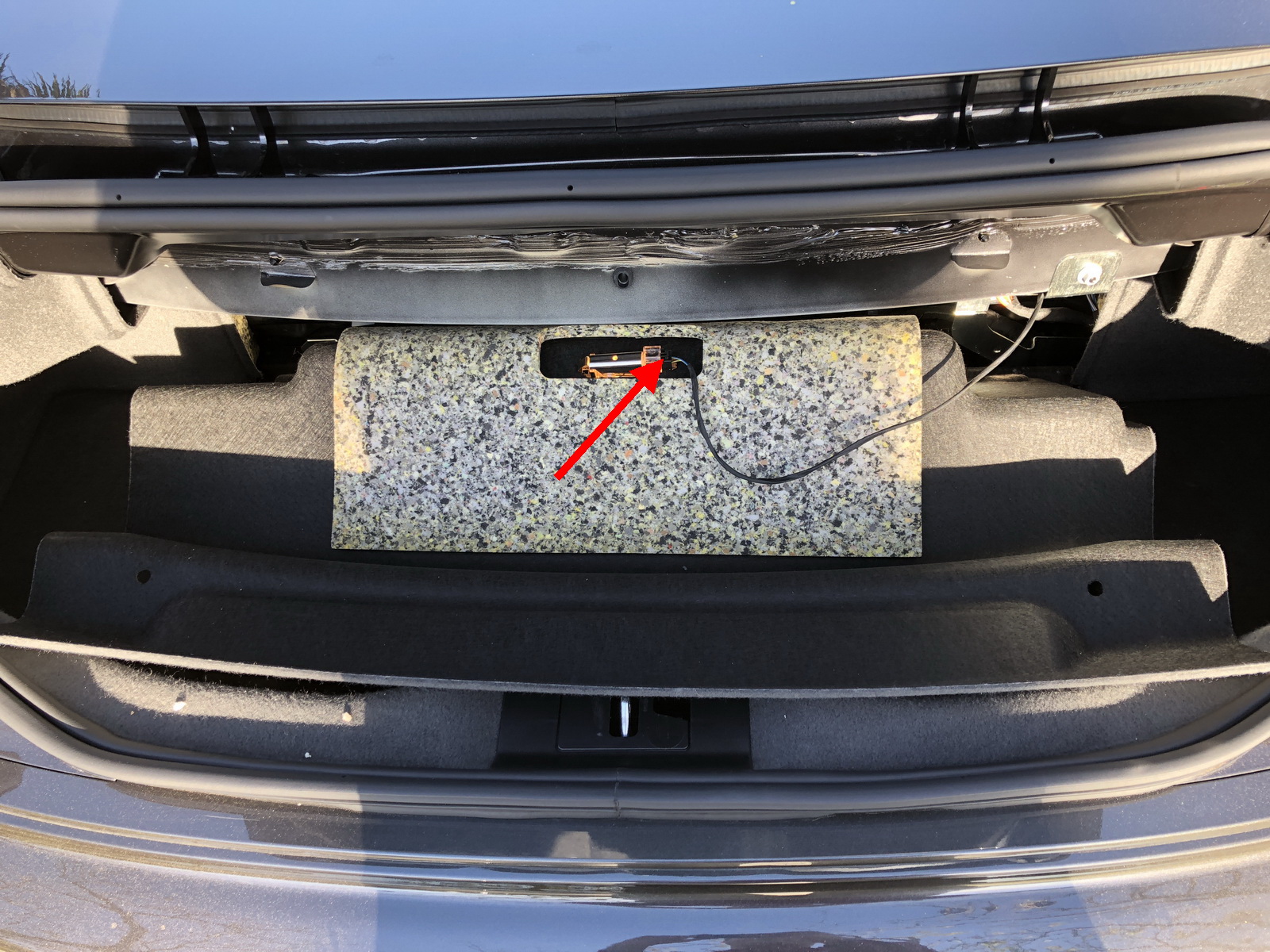

    3. Carefully lower the cover piece, then disconnect the lamp by pushing in on the plug's locking mechanism while pulling it out.
    Installation - Steps 4-6

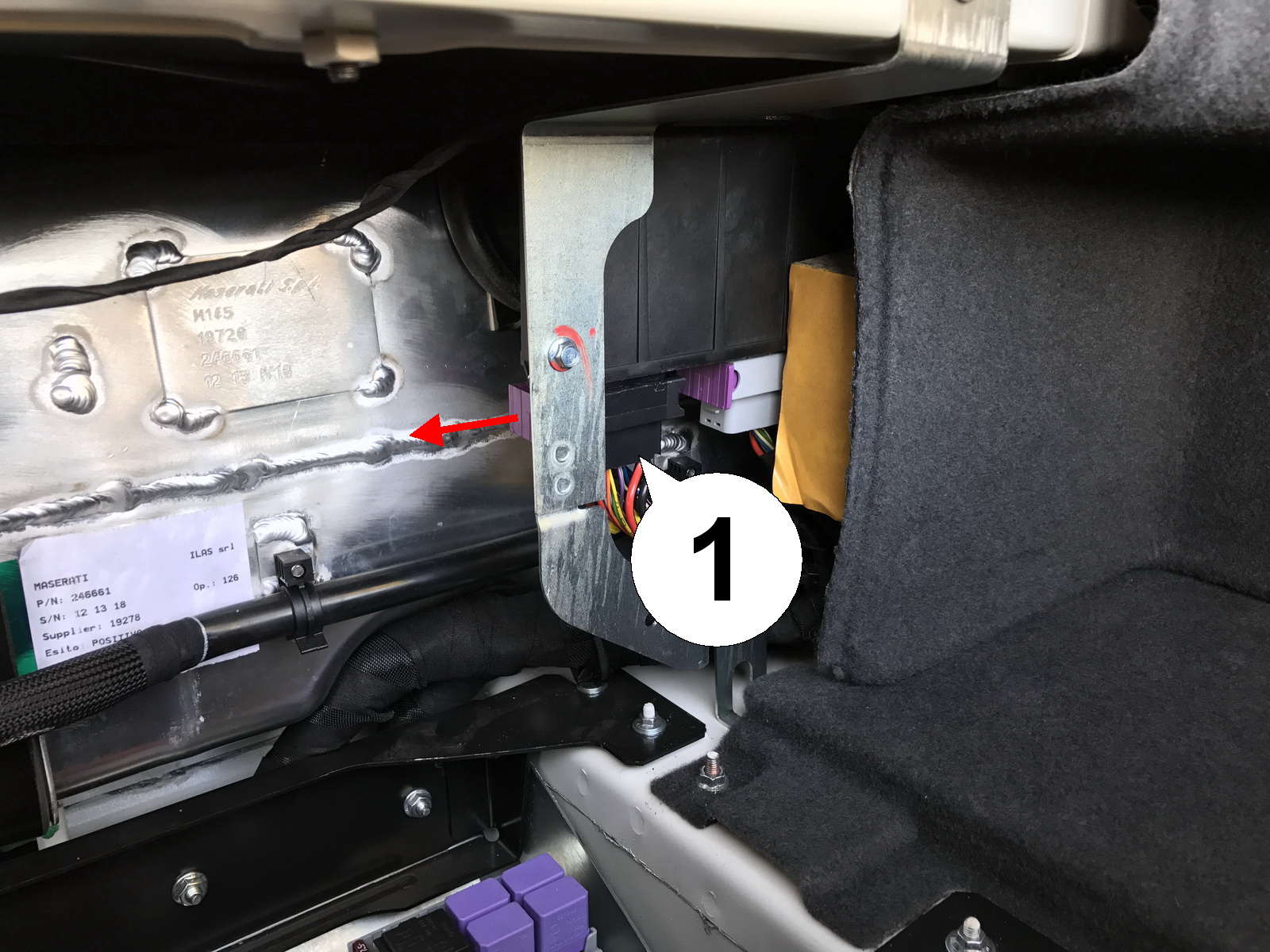

    4. In the right corner is the convertible top controller module. The first black plug (1) needs to be disconnected. Grab under the purple locking lever and pull it straight out. Inspect the one on the supplied wiring harness for a visualization of the mechanism.

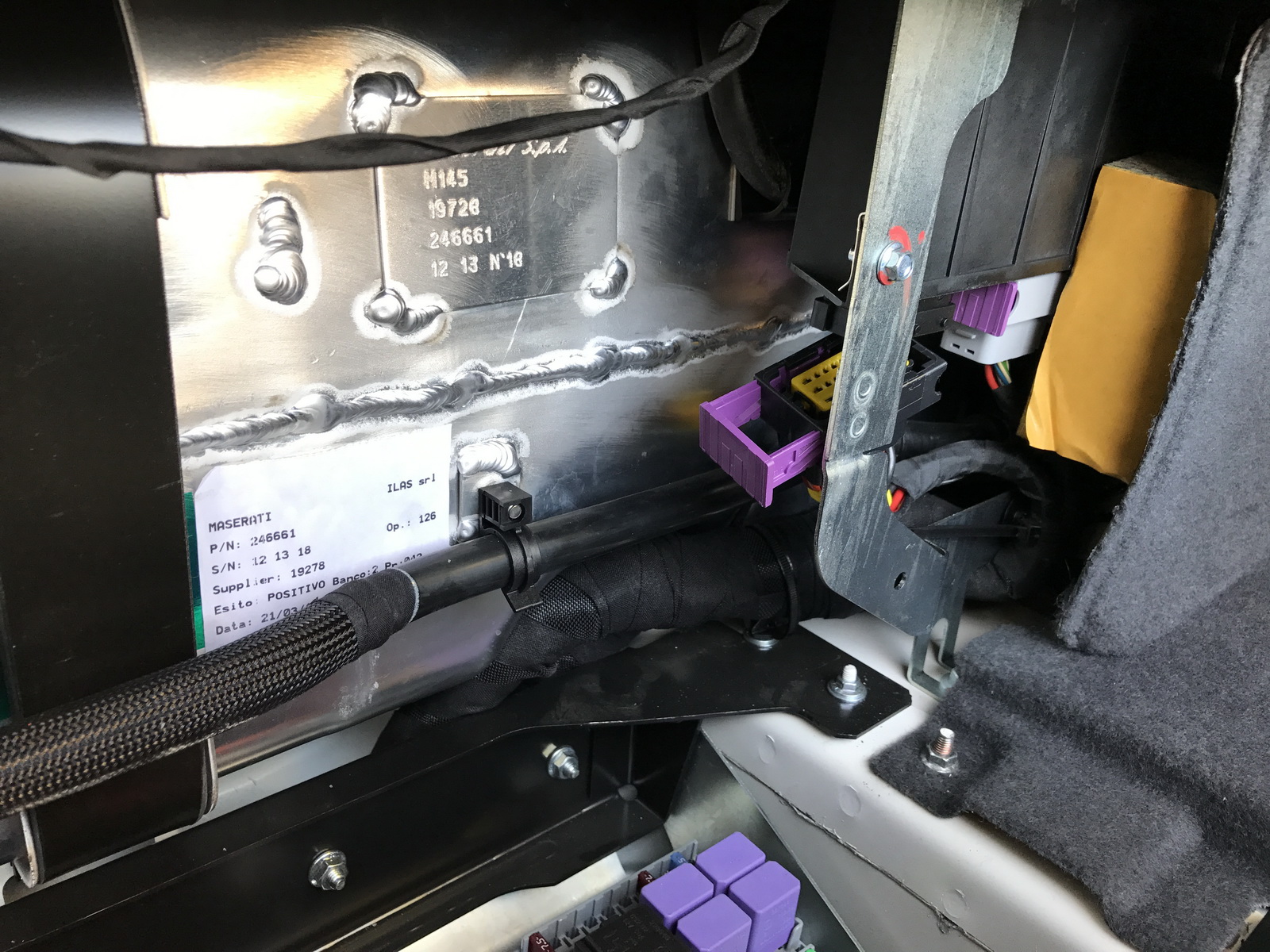

    5. The plug shown in disconnected condition. Now simply connect the original plug to the module harness socket and connect the harness plug to the top controller. Make sure the purple locking levers are all the way in and all connections are secure.

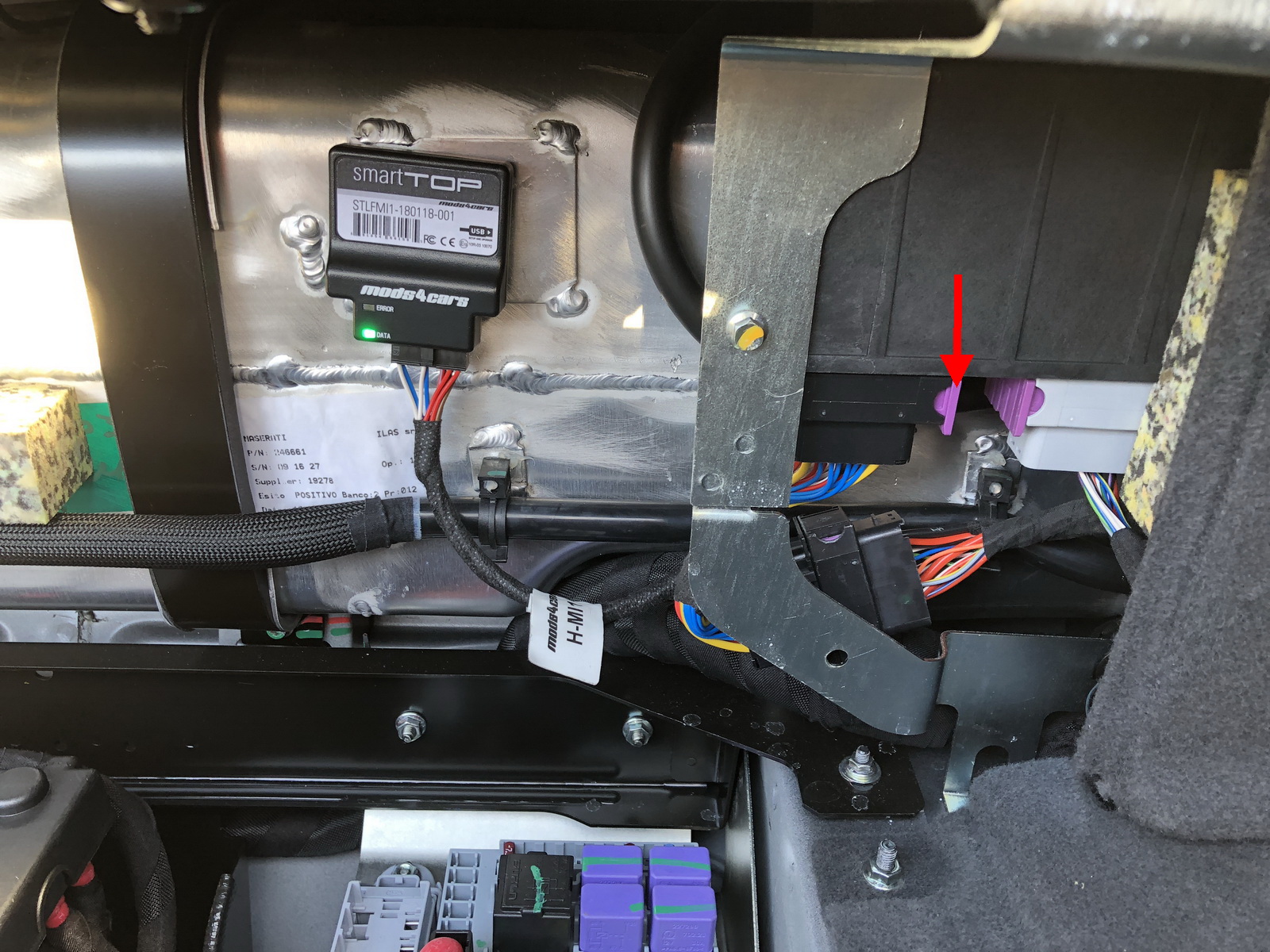

    6. Everything connected. Be aware that the locking mechanism on the supplied harness may need to be on the right (see arrow) instead of the left when inserting the connector. It will only fit one way. Once everything is connected, tap the unlock button on the remote. The green DATA LED on the module should now blink, indicating a successful installation. We recommend connecting the USB cable and leaving it in an accessible spot. Remember to configure the module according to our Operation and Programming manual.
