INSTALLATION Ferrari California


STLFAO1

Comfort Roof Control Module for

  • Alfa Romeo Spider (Model 939)
  • Ferrari California Model Year 2008+
  • Ferrari California 30 Model Year 2012+
  • Ferrari California T Model Year 2014+

    v1.0


  • Further information and manuals for all products can be found on our web site

    w w w . m o d s 4 c a r s . c o m


    We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product.
    PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.
    Important Information. READ BEFORE INSTALLING!
    PRINTING THIS MANUAL
    This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers.

    Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly.

    ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
    TROUBLE SHOOTING - NEED TO CONTACT US?
    If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size!
    We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support

    If you need to contact us, the best and fastest way to do so is by opening a support ticket there

    This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.
    IMPORTANT TROUBLESHOOTING TIPS

    If the top does not work properly or at all after installing the module, these tips can be very helpful:

    • 1) Turn Function 1 (Main Switch) off (Setting 0). The module will be completely passive. If the problem still persists and the top won't work, check all connections. Please also check the green DATA LED on the module!

    • 2) Function 2 now has a valet mode (Setting 2) on many modules. Valet mode completely disables opening of the top. Check the setting for function 2 and make sure the module is NOT in valet mode!

    IMPORTANT: Not all modules have the valet mode! Please check the Operation and Programming Manual!
    Installation - Steps 1-3

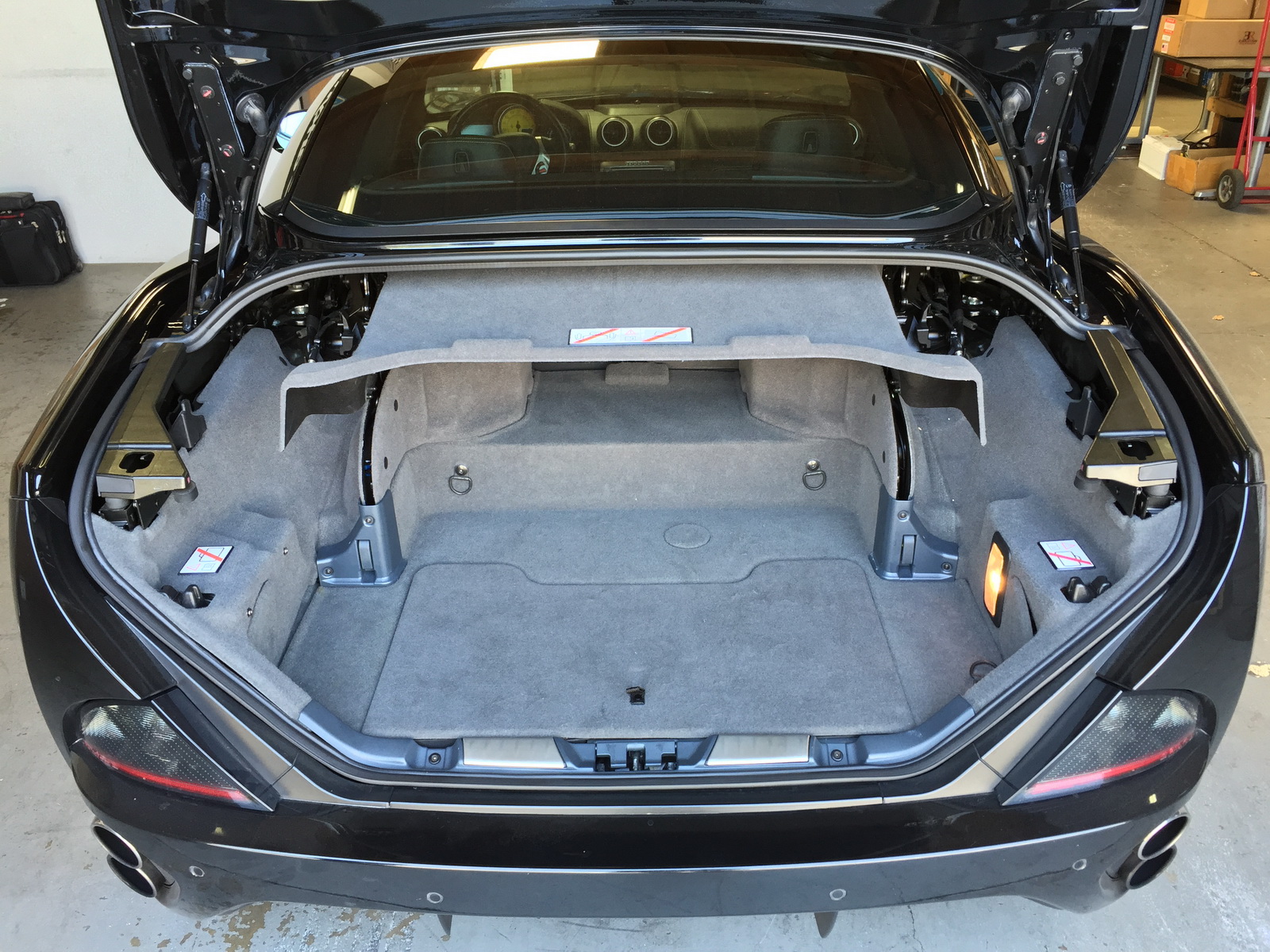

    1. Before installing the kit, fully close the convertible top, then turn the ignition off. Open the trunk and lift up the luggage divider as shown.

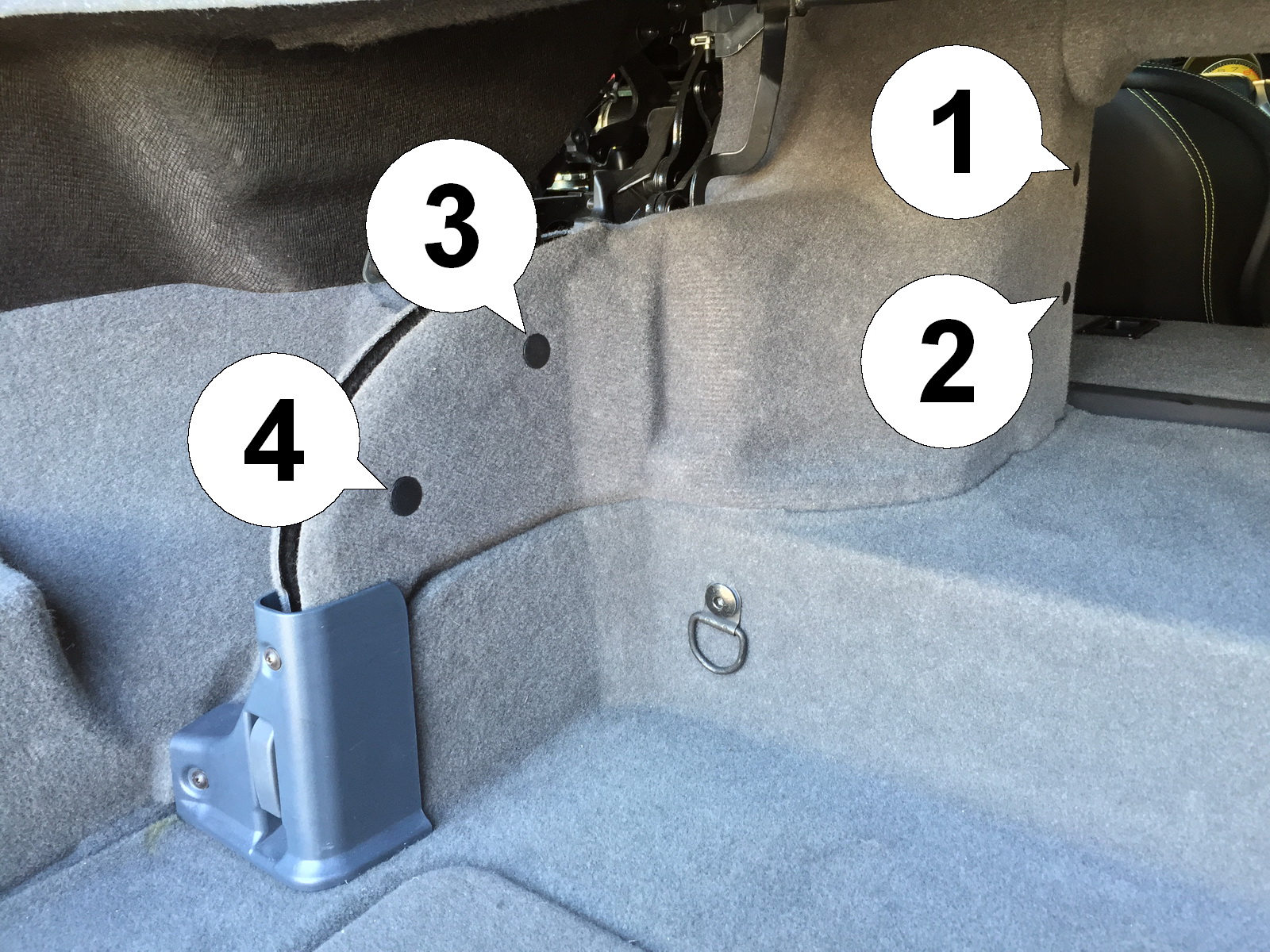

    2. Remove the four plastic rivets (1) through (4).

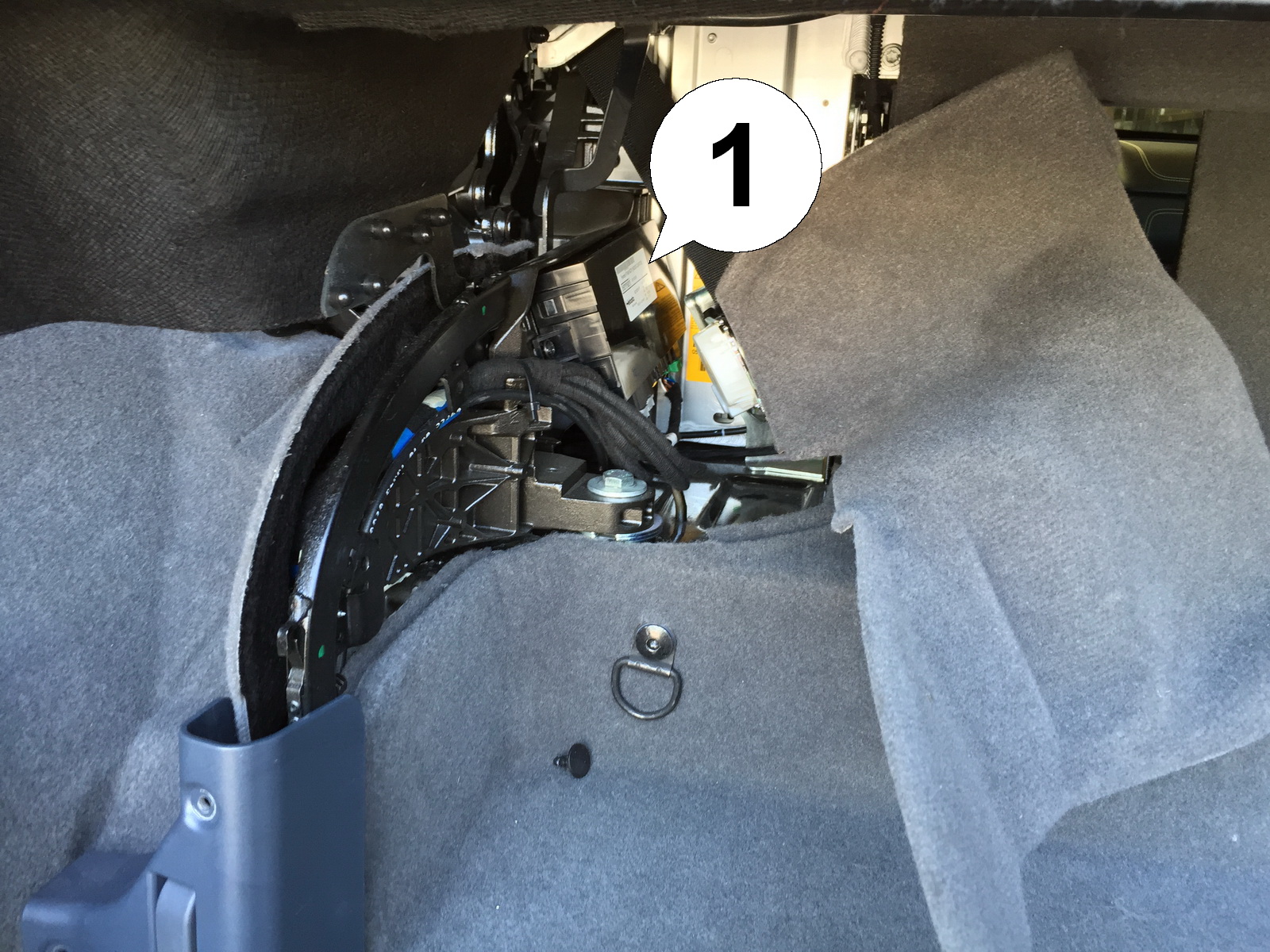

    3. Now the cover piece can be folded over as shown and then removed. The convertible top controller (1) is located in the back corner.
    Installation - Steps 4-6

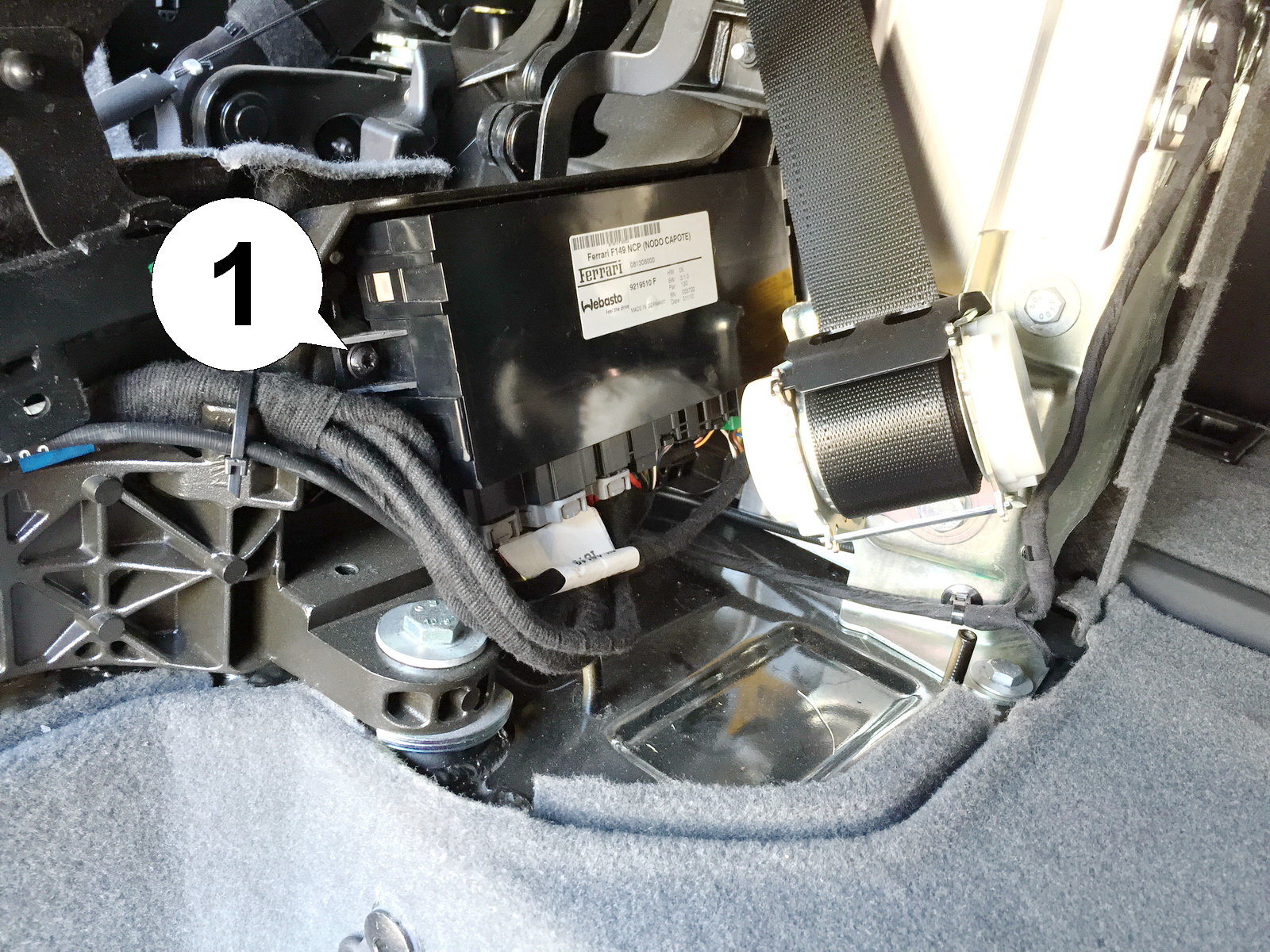

    4. The top controller is mounted with two torx screws. Remove the left screw (1), then only loosen the right one since the control unit is just hooked under it. Pull the control unit out in order to access the connectors on the bottom.

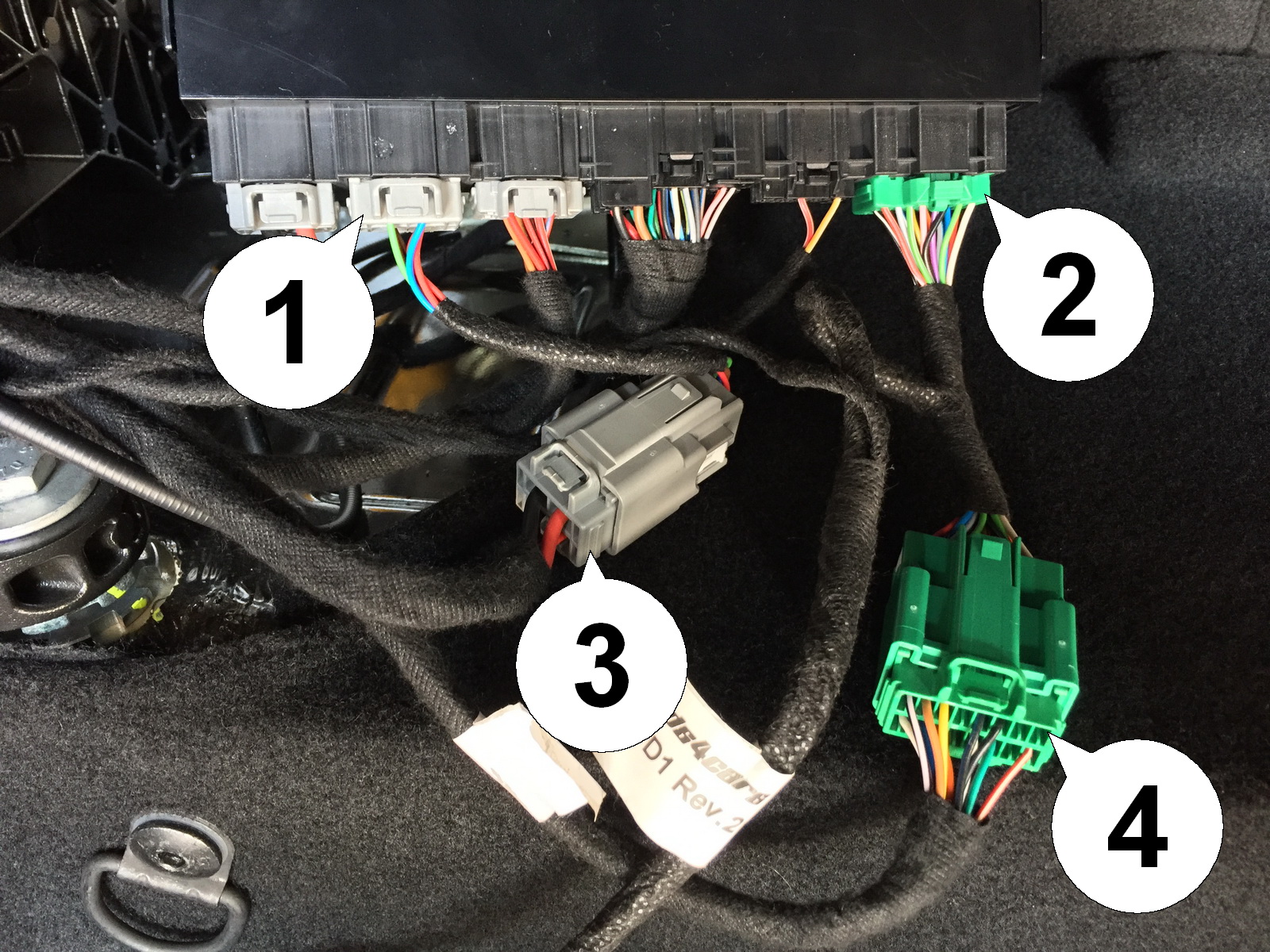

    5. Remove the two plugs (1) and (2) from the control unit, then replace them with the ones from the wiring harness. Connect the two original plugs (3) and (4) to the matching sockets on the harness. Make sure all plugs latch securely into place.

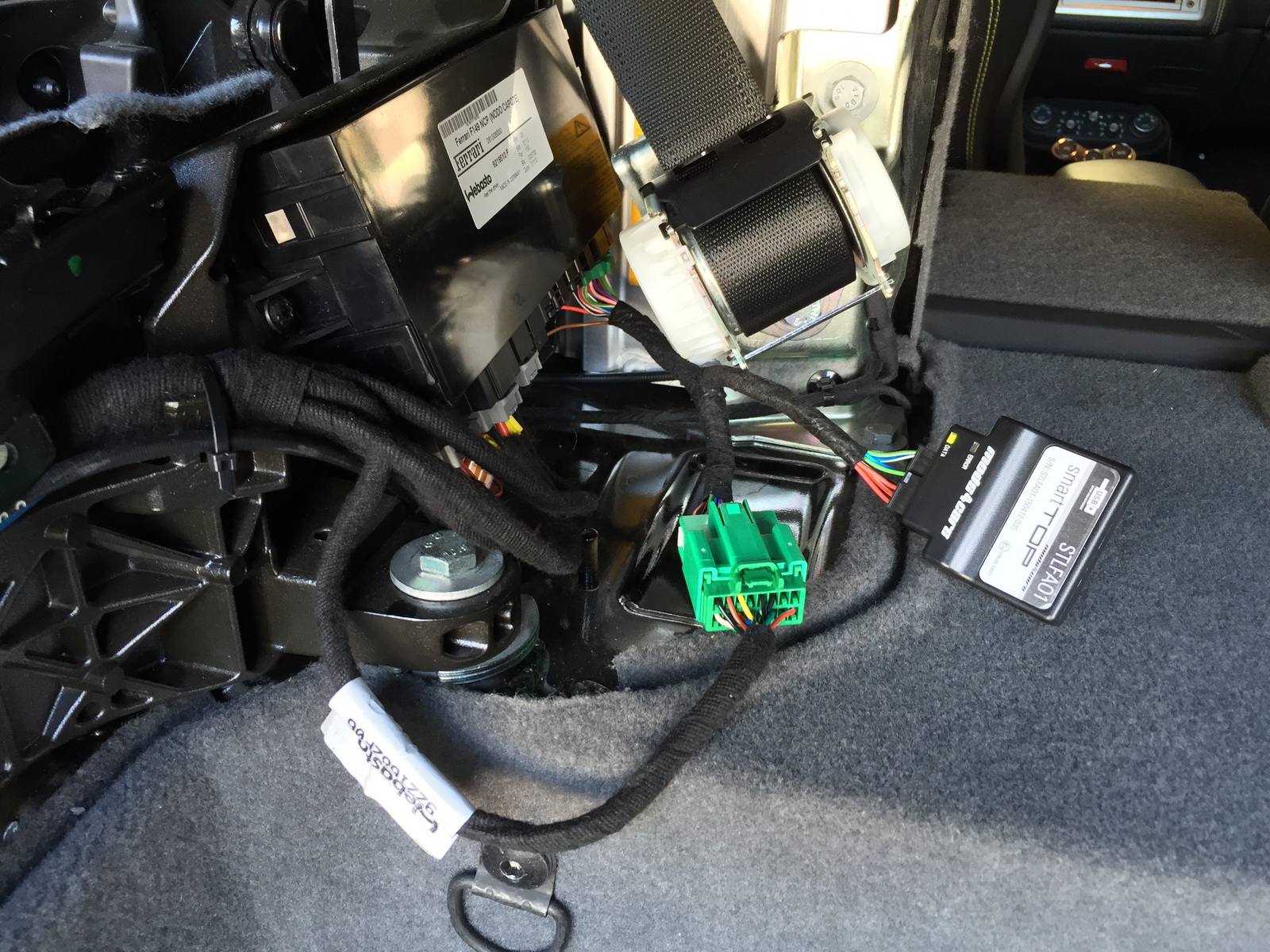

    6. Mount the control unit and lastly connect the SmartTOP module. Tap the unlock button on the remote briefly. The green LED on the module should now blink and thereby signal a successful installation. Attach the module to the face of the control unit using the supplied velcro sticker. We suggest installing the USB cord, so that later the module can be easily configured or updated via laptop. Don't forget to configure the module according to our Operation and Programming manual.
