mods4cars product manual

OPERATION AND PROGRAMMING

STLFBW4

Comfort Roof Control Module designed for

• BMW 1 Series Convertible (E88)
• MINI Cooper Mk II (R57)

Firmware v2.00 and up

Further information and manuals for all products can be found on our web site

w w w . m o d s 4 c a r s . c o m

PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.

We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product. Operation must be supervised and paid attention to in order to ensure that there are no objects or persons in range of moving parts due to the fact that top mechanics do not have pinch protection. Please study and be aware of the procedures to interrupt an ongoing operation in an emergency.

Important Information. READ BEFORE USING!
	PRINTING THIS MANUAL This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers. Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly. ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
	TROUBLE SHOOTING - NEED TO CONTACT US? If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size! We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support If you need to contact us, the best and fastest way to do so is by opening a support ticket there
	This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.

Detailed function description (Factory setting underlined)

Function 1 - MODULE MODE + MASTER SWITCH ( 0=OFF / 1=ON / 2=EXT / 3=EXP )
The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed while keeping all other function settings intact for when it is re-enabled later. • Setting 1 is the regular operation mode with emphasis on safety. Turning the ignition on or off as well as hitting any button on the remote at any time during remote operation immediately stops an ongoing top operation. • Setting 2 is the extended operation mode with emphasis on convenience. Starting or stopping the engine will not stop a top operation and it is possible to lock or unlock the doors one time from the remote while the top is moving. • Setting 3 is the operation mode designed for responsible experts. It allows the doors to be locked and unlocked more than once. This can come in handy if after getting out and locking the doors something was forgotten in the car and needs to be retrieved while the top is still running. Settings 2 and 3 require extra responsibility and caution to avoid injury by moving top parts to passengers not expecting the top to continue running after the engine is turned off and due to the fact that the first key press on the remote to lock or unlock the doors (or continued toggling of the door locks) will not stop the top! To abort the operation, press unlock while the doors are unlocked or lock while they are locked. EXTREMELY IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or risk of injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car in for routine maintenance or lending it to a third person! In case of any top malfunction NEVER take the car with the module still installed to an unsuspecting dealer! In such cases ALWAYS contact Mods4Cars for support first at www.mods4cars.com or completely uninstall the module before a dealer visit.

Function 1 - MODULE MODE + MASTER SWITCH ( 0=OFF / 1=ON / 2=EXT / 3=EXP )

The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed while keeping all other function settings intact for when it is re-enabled later.

• Setting 1 is the regular operation mode with emphasis on safety. Turning the ignition on or off as well as hitting any button on the remote at any time during remote operation immediately stops an ongoing top operation.
• Setting 2 is the extended operation mode with emphasis on convenience. Starting or stopping the engine will not stop a top operation and it is possible to lock or unlock the doors one time from the remote while the top is moving.
• Setting 3 is the operation mode designed for responsible experts. It allows the doors to be locked and unlocked more than once. This can come in handy if after getting out and locking the doors something was forgotten in the car and needs to be retrieved while the top is still running.

Settings 2 and 3 require extra responsibility and caution to avoid injury by moving top parts to passengers not expecting the top to continue running after the engine is turned off and due to the fact that the first key press on the remote to lock or unlock the doors (or continued toggling of the door locks) will not stop the top! To abort the operation, press unlock while the doors are unlocked or lock while they are locked.

EXTREMELY IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or risk of injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car in for routine maintenance or lending it to a third person! In case of any top malfunction NEVER take the car with the module still installed to an unsuspecting dealer! In such cases ALWAYS contact Mods4Cars for support first at www.mods4cars.com or completely uninstall the module before a dealer visit.

Function 2 - Console Switch One-Touch ( 0=OFF / 1=ON )
This function allows full automatic top operation using the console switch. • Setting 1 enables One-Touch operation and comfort close for all windows. Top operation with the console switch: • Holding down the switch (longer than 1 sec) in either direction will operate the top in manual mode for as long as the switch is held. Sunroof closed: • Tap open 1x: Open the sunroof only. • Tap open 2x: Open sunroof and top and bring the windows into the programmed position. • Tap open 3x: Open sunroof and top and bring the windows into the opposite position this one time. Sunroof open: • Tap open 1x: Open the top and bring the windows into the programmed position. • Tap open 2x: Open the top and bring the windows into the opposite position this one time. Convertible top open: • Tap close 1x: Close top, sunroof and windows. • Tap close 2x: Close only top and windows. Leave sunroof open. Sunroof open: • Tap close 1x: Close sunroof and windows. • Tap close 2x: Close only the sunroof and leave the windows open. Comfort close for all windows: • Tap the top close switch while the top is already closed to roll all windows up. To interrupt an ongoing operation: Tap the console switch in any direction at any time - even if the top was started by remote!

Function 2 - Console Switch One-Touch ( 0=OFF / 1=ON )

This function allows full automatic top operation using the console switch.

• Setting 1 enables One-Touch operation and comfort close for all windows.

Top operation with the console switch:
• Holding down the switch (longer than 1 sec) in either direction will operate the top in manual mode for as long as the switch is held.

Sunroof closed:
• Tap open 1x: Open the sunroof only.
• Tap open 2x: Open sunroof and top and bring the windows into the programmed position.
• Tap open 3x: Open sunroof and top and bring the windows into the opposite position this one time.

Sunroof open:
• Tap open 1x: Open the top and bring the windows into the programmed position.
• Tap open 2x: Open the top and bring the windows into the opposite position this one time.

Convertible top open:
• Tap close 1x: Close top, sunroof and windows.
• Tap close 2x: Close only top and windows. Leave sunroof open.

Sunroof open:
• Tap close 1x: Close sunroof and windows.
• Tap close 2x: Close only the sunroof and leave the windows open.

Comfort close for all windows:
• Tap the top close switch while the top is already closed to roll all windows up.

To interrupt an ongoing operation: Tap the console switch in any direction at any time - even if the top was started by remote!

Function 3 - Maximum Speed ( 0=0 km/h / 1=10 km/h / 2=20 km/h / 3=30 km/h / 4=40 km/h )
This function determines the desired speed limit for top operation via console switch. • Setting 0 only allows roof operation while halted. • Setting 1 and up increase the speed for top operation in steps of 10km/h (~7mph). We recommend to keep the speed as low as possible and only operate the top on even and smooth street surfaces! Once the top is started within the programmed speed limit, it will continue running, even if the speed later exceeds the limit during the top operation!

Function 3 - Maximum Speed ( 0=0 km/h / 1=10 km/h / 2=20 km/h / 3=30 km/h / 4=40 km/h )

This function determines the desired speed limit for top operation via console switch.

• Setting 0 only allows roof operation while halted.
• Setting 1 and up increase the speed for top operation in steps of 10km/h (~7mph).

We recommend to keep the speed as low as possible and only operate the top on even and smooth street surfaces!
Once the top is started within the programmed speed limit, it will continue running, even if the speed later exceeds the limit during the top operation!

Function 4 - Remote Top ( 0=OFF / 1=HOLD / 2=TAP / 3=BOTH )
This function allows full automatic top operation with the original remote fob by pressing the lock and unlock buttons. • Setting 1 (Hold) allows opening and closing of the top by holding down the unlock and lock buttons on the remote. • Setting 2 (Tap) allows opening and closing of the top by tapping the unlock and lock buttons on the remote multiple times. • Setting 3 (Both) allows both of the methods to be used. Top operation with the remote fob using HOLD: Sunroof closed: • Hold unlock down for about 4 sec: Open the sunroof only. • Hold unlock down for about 4 sec, let go and tap again once: Open sunroof and top and bring the windows into the programmed position. • Hold unlock down for about 4 sec, let go and tap again twice: Open sunroof and top and bring the windows into the opposite position. Sunroof open: • Hold unlock down for about 4 sec: Open the top and bring the windows into the programmed position. • Hold unlock down for about 4 sec, let go and tap again: Open the top and bring the windows into the opposite position. Convertible Top open: • Hold lock down for about 4 sec: Close top, sunroof and windows. • Hold lock down for about 4 sec, let go and tap again: Close only top and windows. Leave sunroof open. Sunroof open: • Hold lock down for about 4 sec: Close sunroof and windows. • Hold lock down for about 4 sec, let go and tap again: Close only the sunroof and leave the windows open. Top operation with the remote fob using TAPS: Sunroof closed: • Tap unlock 3x in 1 sec intervals: Open the sunroof only. • Tap unlock 4x in 1 sec intervals: Open sunroof and top and bring the windows into the programmed position. • Tap unlock 5x in 1 sec intervals: Open sunroof and top and bring the windows into the opposite position. Sunroof open: • Tap unlock 3x in 1 sec intervals: Open the top and bring the windows into the programmed position. • Tap unlock 4x in 1 sec intervals: Open the top and bring the windows into the opposite position. Convertible Top open: • Tap lock 3x in 1 sec intervals: Close top, sunroof and windows. • Tap lock 4x in 1 sec intervals: Close only top and windows. Leave sunroof open. Sunroof open: • Tap lock 3x in 1 sec intervals: Close sunroof and windows. • Tap lock 4x in 1 sec intervals: Close only the sunroof and leave the windows open. To interrupt an ongoing operation: Tap unlock or lock again. IMPORTANT: Keep in mind that Extended and Expert modes allow one time change (or multiple changes) of the door locks! In such case a second key press on the same button will be necessary to stop the top.

Function 4 - Remote Top ( 0=OFF / 1=HOLD / 2=TAP / 3=BOTH )

This function allows full automatic top operation with the original remote fob by pressing the lock and unlock buttons.

• Setting 1 (Hold) allows opening and closing of the top by holding down the unlock and lock buttons on the remote.
• Setting 2 (Tap) allows opening and closing of the top by tapping the unlock and lock buttons on the remote multiple times.
• Setting 3 (Both) allows both of the methods to be used.

Top operation with the remote fob using HOLD:

Sunroof closed:
• Hold unlock down for about 4 sec: Open the sunroof only.
• Hold unlock down for about 4 sec, let go and tap again once: Open sunroof and top and bring the windows into the programmed position.
• Hold unlock down for about 4 sec, let go and tap again twice: Open sunroof and top and bring the windows into the opposite position.

Sunroof open:
• Hold unlock down for about 4 sec: Open the top and bring the windows into the programmed position.
• Hold unlock down for about 4 sec, let go and tap again: Open the top and bring the windows into the opposite position.

Convertible Top open:
• Hold lock down for about 4 sec: Close top, sunroof and windows.
• Hold lock down for about 4 sec, let go and tap again: Close only top and windows. Leave sunroof open.

Sunroof open:
• Hold lock down for about 4 sec: Close sunroof and windows.
• Hold lock down for about 4 sec, let go and tap again: Close only the sunroof and leave the windows open.

Top operation with the remote fob using TAPS:

Sunroof closed:
• Tap unlock 3x in 1 sec intervals: Open the sunroof only.
• Tap unlock 4x in 1 sec intervals: Open sunroof and top and bring the windows into the programmed position.
• Tap unlock 5x in 1 sec intervals: Open sunroof and top and bring the windows into the opposite position.

Sunroof open:
• Tap unlock 3x in 1 sec intervals: Open the top and bring the windows into the programmed position.
• Tap unlock 4x in 1 sec intervals: Open the top and bring the windows into the opposite position.

Convertible Top open:
• Tap lock 3x in 1 sec intervals: Close top, sunroof and windows.
• Tap lock 4x in 1 sec intervals: Close only top and windows. Leave sunroof open.

Sunroof open:
• Tap lock 3x in 1 sec intervals: Close sunroof and windows.
• Tap lock 4x in 1 sec intervals: Close only the sunroof and leave the windows open.

To interrupt an ongoing operation: Tap unlock or lock again. IMPORTANT: Keep in mind that Extended and Expert modes allow one time change (or multiple changes) of the door locks! In such case a second key press on the same button will be necessary to stop the top.

Function 5 - Remote Windows ( 0=OFF / 1=HOLD / 2=TAP / 3=BOTH )
This function allows separate control of the windows with the original remote fob by pressing the lock and unlock buttons. • Setting 1 (Hold) allows opening and closing of the windows by holding down the unlock and lock buttons on the remote. • Setting 2 (Tap) allows opening and closing of the windows by tapping the unlock and lock buttons on the remote multiple times. • Setting 3 (Both) allows both of the methods to be used. Window operation with the remote fob using HOLD: • Hold unlock down for about 2 sec: Open all windows. • Hold lock down for about 2 sec: Close all windows. Window operation with the remote fob using TAPS: • Tap unlock 2x in 1 sec intervals: Open all windows. • Tap lock 2x in 1 sec intervals: Close all windows.

Function 5 - Remote Windows ( 0=OFF / 1=HOLD / 2=TAP / 3=BOTH )

This function allows separate control of the windows with the original remote fob by pressing the lock and unlock buttons.

• Setting 1 (Hold) allows opening and closing of the windows by holding down the unlock and lock buttons on the remote.
• Setting 2 (Tap) allows opening and closing of the windows by tapping the unlock and lock buttons on the remote multiple times.
• Setting 3 (Both) allows both of the methods to be used.

Window operation with the remote fob using HOLD:
• Hold unlock down for about 2 sec: Open all windows.
• Hold lock down for about 2 sec: Close all windows.

Window operation with the remote fob using TAPS:
• Tap unlock 2x in 1 sec intervals: Open all windows.
• Tap lock 2x in 1 sec intervals: Close all windows.

Function 6 - Keyless Top ( 0=OFF / 1=CLOSE ONLY / 2=OPEN/CLOSE )
This function allows to close and open the convertible top by touching the door handle (requires Keyless Entry option!) • Setting 1 only allows closing the top. • Setting 2 allows closing and opening. Top operation with the Keyless Entry door handle: • Tap thumb on lock sensor 2x slowly, then hold hand inside door handle: Open the top and bring the windows into the programmed position. • Tap thumb on lock sensor 3x slowly: Close top and windows. • Make sure to leave about 2 seconds between taps and that there is a clicking sound after each tap. Otherwise the input was not recognized. To stop an ongoing operation: Tap the lock sensor again. Keep in mind that Extended and Expert modes allow unlocked doors to be locked while the top continues. In such case tap the lock sensor a second time.

Function 6 - Keyless Top ( 0=OFF / 1=CLOSE ONLY / 2=OPEN/CLOSE )

This function allows to close and open the convertible top by touching the door handle (requires Keyless Entry option!)

• Setting 1 only allows closing the top.
• Setting 2 allows closing and opening.

Top operation with the Keyless Entry door handle:
• Tap thumb on lock sensor 2x slowly, then hold hand inside door handle: Open the top and bring the windows into the programmed position.
• Tap thumb on lock sensor 3x slowly: Close top and windows.

• Make sure to leave about 2 seconds between taps and that there is a clicking sound after each tap. Otherwise the input was not recognized.

To stop an ongoing operation: Tap the lock sensor again. Keep in mind that Extended and Expert modes allow unlocked doors to be locked while the top continues. In such case tap the lock sensor a second time.

Function 7 - Window positions after opening top ( 0=NONE / 1=FRONT / 2=ALL )
This function determines the position of the windows after an automatic top opening run. • Setting 0 leaves all windows down. • Setting 1 raises the front windows only. • Setting 2 raises all windows.

Function 8 - Window switch One-Touch ( 0=OFF / 1=ON / 2=NO IGNITION )
This function allows to program the big all-windows switch in the driver's door to raise all windows using One-Touch. By factory this switch only offers One-Touch down. • Setting 1 allows One-Touch closing of all windows with the ignition on. • Setting 2 additionally allows closing all windows with the switch after the ignition has been turned off and the driver's door has been opened. To close all windows at the same time, pull this switch up briefly and let go. To interrupt an operation, tap the switch again in any direction.

Function 8 - Window switch One-Touch ( 0=OFF / 1=ON / 2=NO IGNITION )

This function allows to program the big all-windows switch in the driver's door to raise all windows using One-Touch. By factory this switch only offers One-Touch down.

• Setting 1 allows One-Touch closing of all windows with the ignition on.
• Setting 2 additionally allows closing all windows with the switch after the ignition has been turned off and the driver's door has been opened.

To close all windows at the same time, pull this switch up briefly and let go. To interrupt an operation, tap the switch again in any direction.

Function 9 - Automatic Door Unlocking ( 0=OFF / 1=KEY / 2=IGN )
This function can be set to automatically unlock the doors when either the key is pulled from the ignition lock (or turned off completely on keyless models) or when the engine is turned off. This removes the requirement to pull the door handles twice to get out of the car. • Setting 1 unlocks the doors after the key is pulled from the ignition lock (ignition fully off). • Setting 2 unlocks the doors when the engine is turned off (ignition in ACC position or fully off).

Function 9 - Automatic Door Unlocking ( 0=OFF / 1=KEY / 2=IGN )

This function can be set to automatically unlock the doors when either the key is pulled from the ignition lock (or turned off completely on keyless models) or when the engine is turned off. This removes the requirement to pull the door handles twice to get out of the car.

• Setting 1 unlocks the doors after the key is pulled from the ignition lock (ignition fully off).
• Setting 2 unlocks the doors when the engine is turned off (ignition in ACC position or fully off).

Function 10 - Sequential unlock with door handle ( 0=OFF / 1=ON / 2=ALWAYS )
This function allows using the touch door handle to unlock the passenger door, if the car is equipped with the comfort access touch handles (keyless entry) and programmed to only unlock the driver's door when unlocking via door handle. • Setting 1 enables the unlocking sequence via door handle (see below). • Setting 2 always unlocks both doors when touching the door handle. The remote's factory behavior remains unchanged: The first tap unlocks the driver's door only. A second tap will unlock the passenger door. Unlocking all doors by touch sequence (Setting 1): Touch the lock surface first (a click from door locks must be audible), then wait 3 sec and touch the unlock surface inside the handle to unlock both doors at once.

Function 10 - Sequential unlock with door handle ( 0=OFF / 1=ON / 2=ALWAYS )

This function allows using the touch door handle to unlock the passenger door, if the car is equipped with the comfort access touch handles (keyless entry) and programmed to only unlock the driver's door when unlocking via door handle.

• Setting 1 enables the unlocking sequence via door handle (see below).
• Setting 2 always unlocks both doors when touching the door handle. The remote's factory behavior remains unchanged: The first tap unlocks the driver's door only. A second tap will unlock the passenger door.

Unlocking all doors by touch sequence (Setting 1):
Touch the lock surface first (a click from door locks must be audible), then wait 3 sec and touch the unlock surface inside the handle to unlock both doors at once.

Function 11 - Folding Mirrors ONLY 1 SERIES BMW ( 0=OFF / 1=HOLD / 2=TAP / 3=ALWAYS )
For technical reasons this function has no effect on the Mini and should stay disabled.

Function 12 - Block Factory Commands ( 0=OFF / 1=ON )
This function attempts to block the factory "raising or lowering of the windows by remote" command present on some models when using the HOLD mode for the top. • Setting 1 enables this function. On some models it is possible from the factory to hold down the remote to lower or raise the windows. This interferes with the module's way to control the convertible top when using the HOLD method and for example would start raising the windows prematurely when holding the lock button on the remote in order to close the top. This function is not guaranteed to be compatible with all cars, so if there are side effects like stuttering windows, please leave it disabled and instead use TAPS to control the top from the remote.

Function 12 - Block Factory Commands ( 0=OFF / 1=ON )

This function attempts to block the factory "raising or lowering of the windows by remote" command present on some models when using the HOLD mode for the top.

• Setting 1 enables this function.

On some models it is possible from the factory to hold down the remote to lower or raise the windows. This interferes with the module's way to control the convertible top when using the HOLD method and for example would start raising the windows prematurely when holding the lock button on the remote in order to close the top.
This function is not guaranteed to be compatible with all cars, so if there are side effects like stuttering windows, please leave it disabled and instead use TAPS to control the top from the remote.

Programming
	This module offers several different functions, each with several settings. All functions and settings are described in detail above and a quick reference table (matrix) can be found at the end of this manual. We recommend printing the matrix and storing it in the glove box! To activate the programming mode, turn the ignition fully ON (no need to start the engine), then hold down the convertible top switch (1) in the direction the top is already in (open when the top is open, close when the top is closed) until both blinker arrows in the cluster light up. Now let go. The module shows the current function via the left arrow (2) and that function's setting via right arrow (3). As an example, the left arrow blinks 1x and the right arrow blinks 2x: Function 1 is currently set to setting 2. To select the function, tap the top switch briefly. To change the setting of the selected function, hold the switch for about 1 sec. A brief tap on the top open switch advances to the next function, a brief tap on the top close switch returns to the last one. After reading the current function and setting via the blinker signals, a long tap on the top open switch increases the setting while a long tap on the top close switch decreases it. To end programming mode, either turn the ignition off or hold down the top switch in either direction for a longer time (about 5 sec) until both arrows light up. Programming mode also terminates automatically after 60 sec. of inactivity.

Programming

This module offers several different functions, each with several settings. All functions and settings are described in detail above and a quick reference table (matrix) can be found at the end of this manual. We recommend printing the matrix and storing it in the glove box!
To activate the programming mode, turn the ignition fully ON (no need to start the engine), then hold down the convertible top switch (1) in the direction the top is already in (open when the top is open, close when the top is closed) until both blinker arrows in the cluster light up. Now let go.

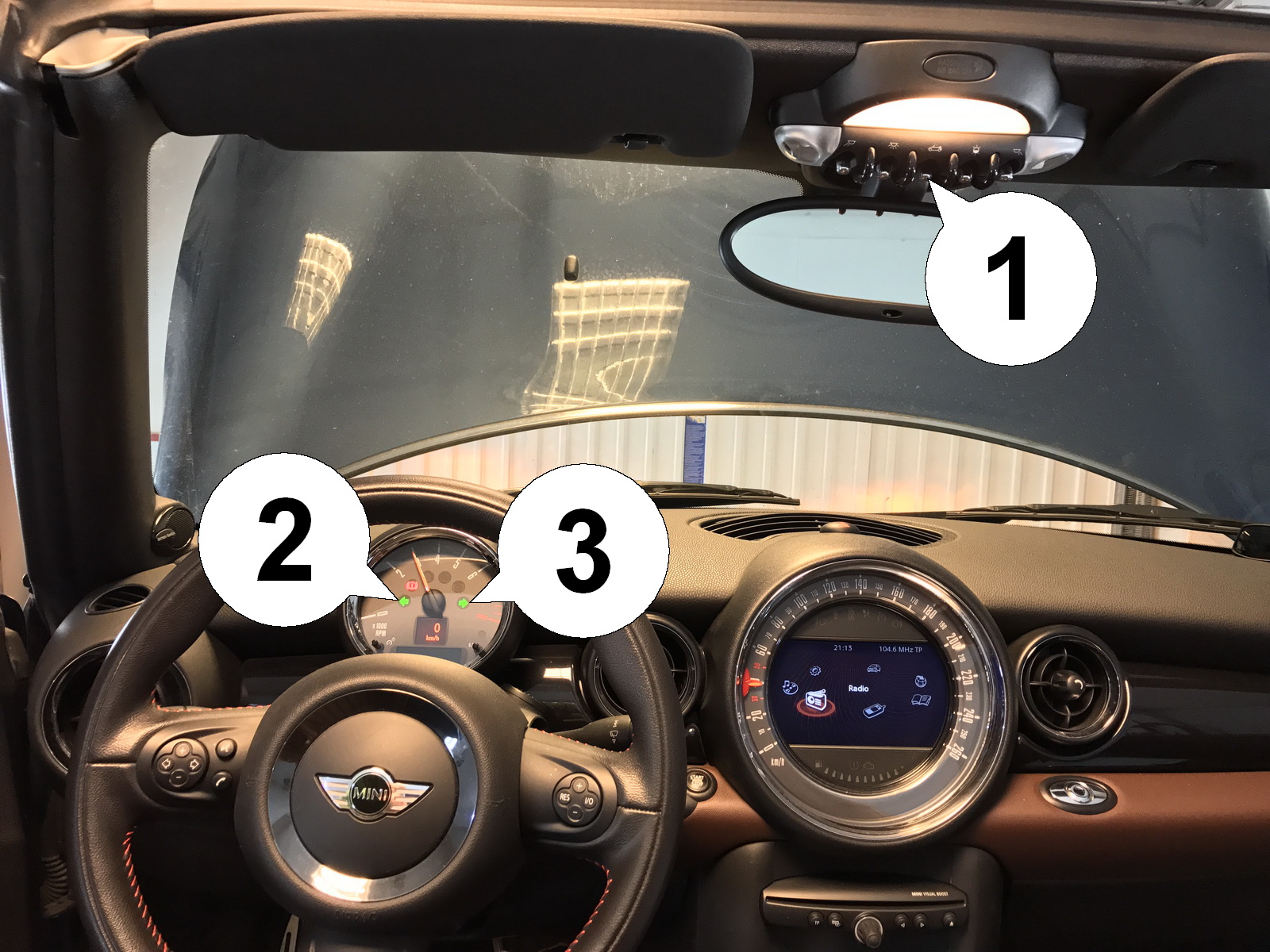

The module shows the current function via the left arrow (2) and that function's setting via right arrow (3). As an example, the left arrow blinks 1x and the right arrow blinks 2x: Function 1 is currently set to setting 2.
To select the function, tap the top switch briefly. To change the setting of the selected function, hold the switch for about 1 sec. A brief tap on the top open switch advances to the next function, a brief tap on the top close switch returns to the last one. After reading the current function and setting via the blinker signals, a long tap on the top open switch increases the setting while a long tap on the top close switch decreases it.

To end programming mode, either turn the ignition off or hold down the top switch in either direction for a longer time (about 5 sec) until both arrows light up. Programming mode also terminates automatically after 60 sec. of inactivity.

Function/Setting Matrix (green fields are defaults)
Product: STLFBW4 - SmartTOP for BMW 1 Series Convt. (E88) and MINI Convt. (R57) Firmware: v2.00 and up
	SETTING 0	SETTING 1	SETTING 2	SETTING 3	SETTING 4
Function 1	OFF	ON	EXT	EXP
MODULE MODE + MASTER SWITCH	Module Disabled	Module Enabled	Extended Mode READ MANUAL!	Expert Mode READ MANUAL!
Function 2	OFF	ON
Console Switch One-Touch	Factory behavior	One-Touch operation
Function 3	0 km/h	10 km/h	20 km/h	30 km/h	40 km/h
Maximum Speed	Only while halted	10 km/h (~7mph)	20 km/h (~13mph)	30 km/h (~19mph)	40 km/h (~25mph)
Function 4	OFF	HOLD	TAP	BOTH
Remote Top	No remote functions	Hold remote for 3 sec.	Tap remote 3x	Hold and Tap enabled
Function 5	OFF	HOLD	TAP	BOTH
Remote Windows	No remote functions	Hold remote for 2 sec.	Tap remote 2x	Hold and Tap enabled
Function 6	OFF	CLOSE ONLY	OPEN/CLOSE
Keyless Top	Factory behavior	Top can be closed	Top can be opened and closed
Function 7	NONE	FRONT	ALL
Window positions after opening top	All windows down	Front windows up	All windows up
Function 8	OFF	ON	NO IGNITION
Window switch One-Touch	Factory behavior	One-Touch operation	Ignition off allowed
Function 9	OFF	KEY	IGN
Automatic Door Unlocking	Factory behavior	Unlock doors when key is pulled	Unlock doors when ignition is turned off
Function 10	OFF	ON	ALWAYS
Sequential unlock with door handle	Factory behavior	Unlock Sequence via Handle	Always Unlock via Handle
Function 11	OFF	HOLD	TAP	ALWAYS
Folding Mirrors ONLY 1 SERIES BMW	Disabled	Hold button briefly	Tap button 2x	Always fold in
Function 12	OFF	ON
Block Factory Commands	Factory behavior	Enabled
