OPERATION AND PROGRAMMING


STHFAI2

Comfort Roof Control Module for

  • Audi TT Roadster (8S)

    v1.2


  • Further information and manuals for all products can be found on our web site

    w w w . m o d s 4 c a r s . c o m


    We explicitly point out that all functions of this control unit should be used only while exercising caution and responsibility. We can NOT be held liable for any damage or injury caused by installing or using this product.
    PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS PRODUCT.
    Important Information. READ BEFORE USING!
    PRINTING THIS MANUAL
    This manual is designed to produce completely filled pages. In order to get best print results, simply set the borders to minimum settings in the browser's page setup menu and disable headers and footers.

    Activate the print preview and if necessary decrease the zoom level until all pages are shown correctly.

    ALL IMAGES CAN BE CLICKED FOR FULL SIZE in the browser.
    TROUBLE SHOOTING - NEED TO CONTACT US?
    If you run into any problems after installing the module, please go over the manual again in great detail, clicking every photo for full size!
    We now have a full Knowledge Base with Support Ticket system available online at www.mods4cars.com/support

    If you need to contact us, the best and fastest way to do so is by opening a support ticket there

    This module comes with our USB Field Upgrade and Configuration Port! We recommend connecting it to a computer BEFORE YOU INSTALL and using our support app "m4cconnect" to do a quick firmware update check. M4cconnect as well as all other information regarding USB update and configuration can be found at www.mods4cars.com/usb. You can even configure and activate your favorite module functions and settings on screen before the module is installed in the car! It is a good idea to permanently install the USB cable with the module in the car, leaving the computer plug in an easily accessible spot for later use with a Wifi/3G/4G connected laptop.
    Detailed function description (* = Factory setting)
    Function 1 - Main Switch - Workshop and Diagnostics ( 0=OFF / *1=ON )
    The module can quickly and easily be enabled and disabled using this function. It acts like a master switch. When disabled, the module becomes completely inactive and behaves as if it was not installed.
    Setting 0 disables the entire module while keeping all other function settings intact. This allows turning the module off and back on without the need to reconfigure all of the other user configurable settings.

    IMPORTANT: In order to avoid problems with diagnostic tools and to avoid confusion or injury by unexpected top movement, we urge you to ALWAYS DISABLE the module before taking the car to a shop or lending it to a third person! If problems with the top arise while the module is installed, ALWAYS contact Mods4Cars first at www.mods4cars.com. NEVER take the car to a dealer without getting support first!


    Function 2 - One-Touch top operation ( 0=OFF / *1=ON WU / 2=ON WD / 3=EXT WU / 4=EXT WD )
    This function enables one-touch console switch operation, for which the window position after top open as well as an optional extended convenience mode can be programmed.
    Setting 1 is standard one-touch mode with windows up (WU) after top open.
    Setting 2 is standard one-touch mode with windows down (WD) after top open.
    Settings 3 and 4 (extended) are the same as 1 and 2, but additionally it is possible to turn off the ignition and pull the key while the top still continues.
    Settings 3 and 4 require extra responsibility and caution to avoid injury by moving top parts to passengers not expecting the top to continue running after the engine is turned off!

    Top operation with the console switch:
    • Holding down the switch (>2 sec) in either direction will operate the top in manual mode for as long as the switch is held.
    • Tap open 1x to open the top and bring the windows into the selected position (WU=Windows Up, WD=Windows Down).
    • Tap open 2x to open the top and bring the windows into the opposite position this one time (Down on settings 1 and 3, Up on settings 2 and 4).
    • Tap close 1x to close top and windows.
    • Tap close 2x to close only the top and leave the windows open.
    Tap the console switch in any direction to interrupt an ongoing operation at any time - even if the top was started by remote!

    Comfort close for all windows:
    • Tap the top close switch when the top is already closed to roll all windows up.


    Function 3 - Top Remote Control ( 0=OFF / *1=ON WU / 2=ON WD / 3=EXT WU / 4=EXT WD )
    This function allows full automatic top operation with the original remote fob by pressing the lock and unlock buttons.
    Also here it is possible to determine (independently from operation via the center console switch) the position of the windows after opening the top.
    Setting 1 is standard remote mode with windows up (WU) after top open.
    Setting 2 is standard remote mode with windows down (WD) after top open.
    Settings 3 and 4 (extended) are the same as 1 and 2, only that it is possible to turn the ignition on and start the engine while the top still continues. Additionally getting out of the car and locking the doors by remote will not interrupt an ongoing top operation.
    Settings 3 and 4 require extra responsibility and caution to avoid injury by moving top parts, as locking the (previously unlocked) doors with the remote will not stop the top!

    Top operation with the remote fob:
    • Tap open on the remote 3x (in 1 sec intervals) to open the top and bring the windows into the selected position (WU=Windows Up, WD=Windows Down).
    • Tap open on the remote 4x (in 1 sec intervals) to open the top and bring the windows into the opposite position this one time (Down on settings 1 and 3, Up on settings 2 and 4).
    • Tap close on the remote 3x (in 1 sec intervals) to close top and windows.
    • Tap close on the remote 4x (in 1 sec intervals) to close top and leave windows down.
    • Alternatively the top can also be closed using the 3x/4x open sequence instead of 3x/4x close. The car will NOT be locked in the end.
    Tap any direction to stop an ongoing operation. To stop the top in extended mode in any door lock state, tap the same direction twice!


    Function 4 - Window Remote Control ( 0=OFF / *1=HOLD / 2=TAP / 3=BOTH )
    This function allows remote windows operation independently from the top with the original remote fob by pressing the lock and unlock buttons.
    Setting 1 only allows use of the HOLD operation scheme, setting 2 only allows use of the TAP operation scheme. Setting 3 allows both schemes.

    Window operation with the remote fob using HOLD:
    • Hold down open on the remote for 2 seconds, then let go to open all windows.
    • Hold down close on the remote for 2 seconds, then let go to close all windows.

    Window operation with the remote fob using TAP:
    • Tap open on the remote 2x (in 1 sec intervals) to open all windows.
    • Tap close on the remote 2x (in 1 sec intervals) to close all windows.


    Function 5 - Keyless top operation ( *0=OFF / 1=CLOSE / 2=OPEN AND CLOSE )
    This function allows to close and open the convertible top by touching the rectangular area on the door handle (requires Keyless Entry option!)
    Setting 1 only allows closing the top, setting 2 allows closing and opening.
    IMPORTANT: Function 3 (Remote Control) must be enabled as well for door handle operation to work!

    Top operation with the Keyless Entry door handle:
    • Tap lock sensor 3x (in 1 sec intervals) to close top and windows.
    • Tap lock sensor 4x (in 1 sec intervals) to close top and leave windows down.
    • Tap lock sensor 2x (in 1 sec intervals), then grab inside the door handle to open the top and bring the windows into the position selected in function 3.


    Function 6 - Switch Logic invert ( *0=OFF / 1=ON )
    This function allows reversing the direction of the console top switch, if desired.


    Function 7 - Wind deflector convenience ( *0=OFF / 1=REMOTE / 2=CONSOLE / 3=ALWAYS )
    This function automatically raises the wind deflector after a top open operation.
    Setting 1 only raises the deflector up after the top was opened by remote or door handle, not when the console switch was used.
    Setting 2 only raises the deflector up after the top was opened using the console switch.
    Setting 3 always raises the wind deflector up after a top open cycle.


    Function 8 - Wind deflector One-Touch up ( *0=OFF / 1=ON )
    When this function is turned on, a quick tap on the console wind deflector UP switch will automatically raise the deflector.


    Programming
    This module is equipped with our interactive setup feature to allow easy setting of the desired options.

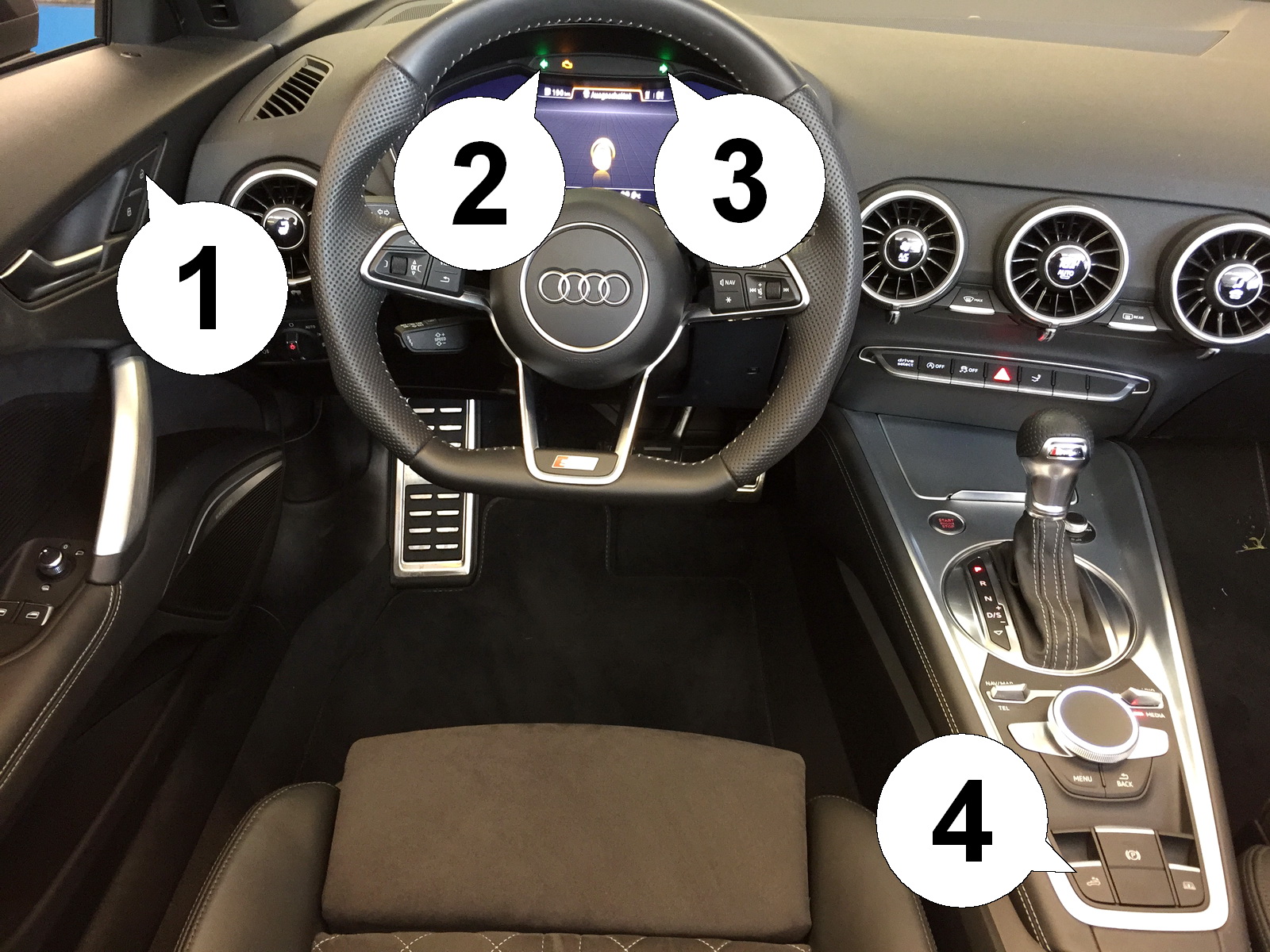

    All programming is done by using the rooftop switch (4) and the two green turn signal (indicator) arrows (2 and 3). Functions are indicated by the left arrow (2) and their settings are indicated by the right arrow (3).
    Navigation is done by pushing the top switch down (next function) or pulling it up (next setting). After selecting the last function or function setting, the setup automatically jumps back to the first function / lowest setting. Each time either a new function is selected or a function's setting is changed, the arrows will indicate the new status by first blinking the function (left arrow) and then the current setting (right arrow).
    To enter programming mode: Turn the ignition fully ON, then push and hold the driver's door unlock switch (1) until the left arrow blinks once to indicate function 1. Now let go of the switch. From this point on you can navigate through the functions by pushing the top button down and once the arrows are finished indicating the function and setting, change the setting by pulling it up. The new settings are active immediately.

    To end programming mode, either wait for 30 sec. or push the unlock switch again. End of programming mode is indicated by both arrows lighting up simultaneously for 1 second.


    Function/Setting Matrix (*green fields are defaults)
    Product: STHFAI2 - SmartTOP for Audi TT Roadster (8S)
    Firmware: v1.2x
    SETTING 0SETTING 1SETTING 2SETTING 3SETTING 4
    FUNCTION 1 OFF*ON---
    Main SwitchModule DisabledModule Enabled
    FUNCTION 2 OFF*ON WUON WDEXT WUEXT WD
    Conv. Top One-TouchDon't change center console switch behaviorEnabled + windows up after top openSame as 1 but windows down after top openAllow ignition off during top operationSame as 3 but windows down after top open
    FUNCTION 3 OFF*ON WUON WDEXT WUEXT WD
    Remote ControlNo remote functionsEnabled + windows up after top openSame as 1 but windows down after top openAllow ignition on during top operationSame as 3 but windows down after top open
    FUNCTION 4 OFF*HOLDTAPBOTH-
    Remote WindowsNo remote controlHold remote lock/unlock for 2 seconds to activateTap remote lock/unlock twice to activateHold (2 sec) or tap (twice) to activate
    FUNCTION 5 *OFFCLOSEOPEN/CLOSE--
    Keyless OperationFactory behaviorTap handle lock sensor 3x to raise top3x lock to raise top
    2x lock and 1x unlock to lower top
    FUNCTION 6 *OFFON---
    Top Switch LogicFactory behaviorSwitch action reversed
    FUNCTION 7 *OFFREMOTECONSOLEALWAYS-
    Wind Deflector Auto-UpDisabledAfter top open by remote or door handleAfter top open by center console switchAlways raise deflector after one-touch open
    FUNCTION 8 *OFFON---
    Wind Deflector One-TouchFactory behaviorOne-Touch raise enabled
